Current Role, Technical Documentation

The Miners

Technical drafting and fit-out documentation for a coffee franchise, currently in progress across more than ten renovation projects.

Interior Designer & 3D VisualizerCurrent role
10+Franchise renovation sites
The finished bench installed outside The Miners storefront, warm afternoon light
Hero render — the finished bench installed outside The Miners.
01 The Bench

A client wanted seating for outside his space for the summer, but couldn't find anything he liked to buy off the shelf. I designed a bench for him instead, working from a few references he sent over. This is the final design.

Drag to orbit
Interactive 3D model of the bench. Switch between three versions above: with materials, just the structure, and just the wood. Drag to rotate, scroll to zoom.
The Bench
Own design, construction drawings for fabrication
Scroll or pinch to zoom · Drag to pan

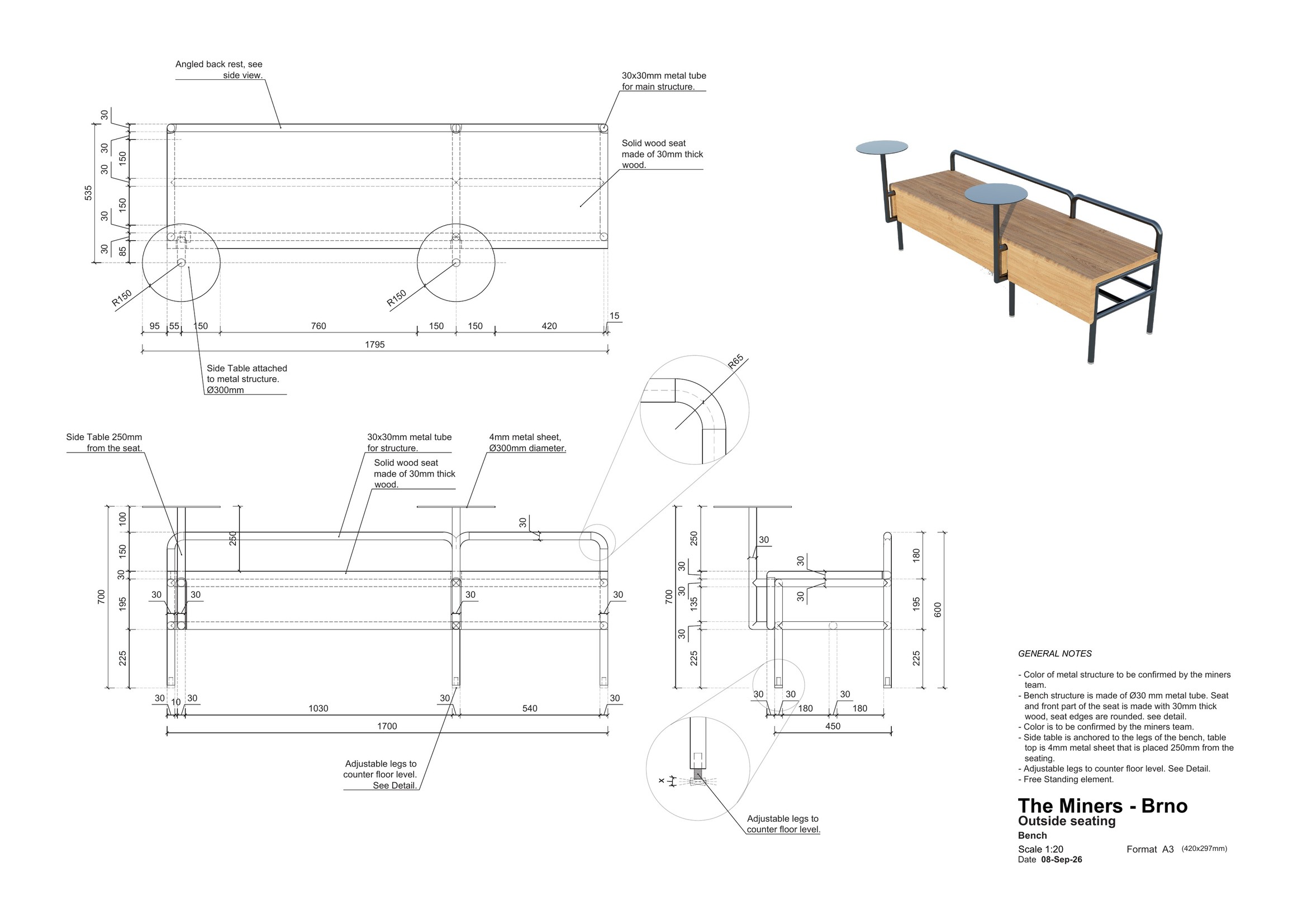

The Miners, The Bench: Overview

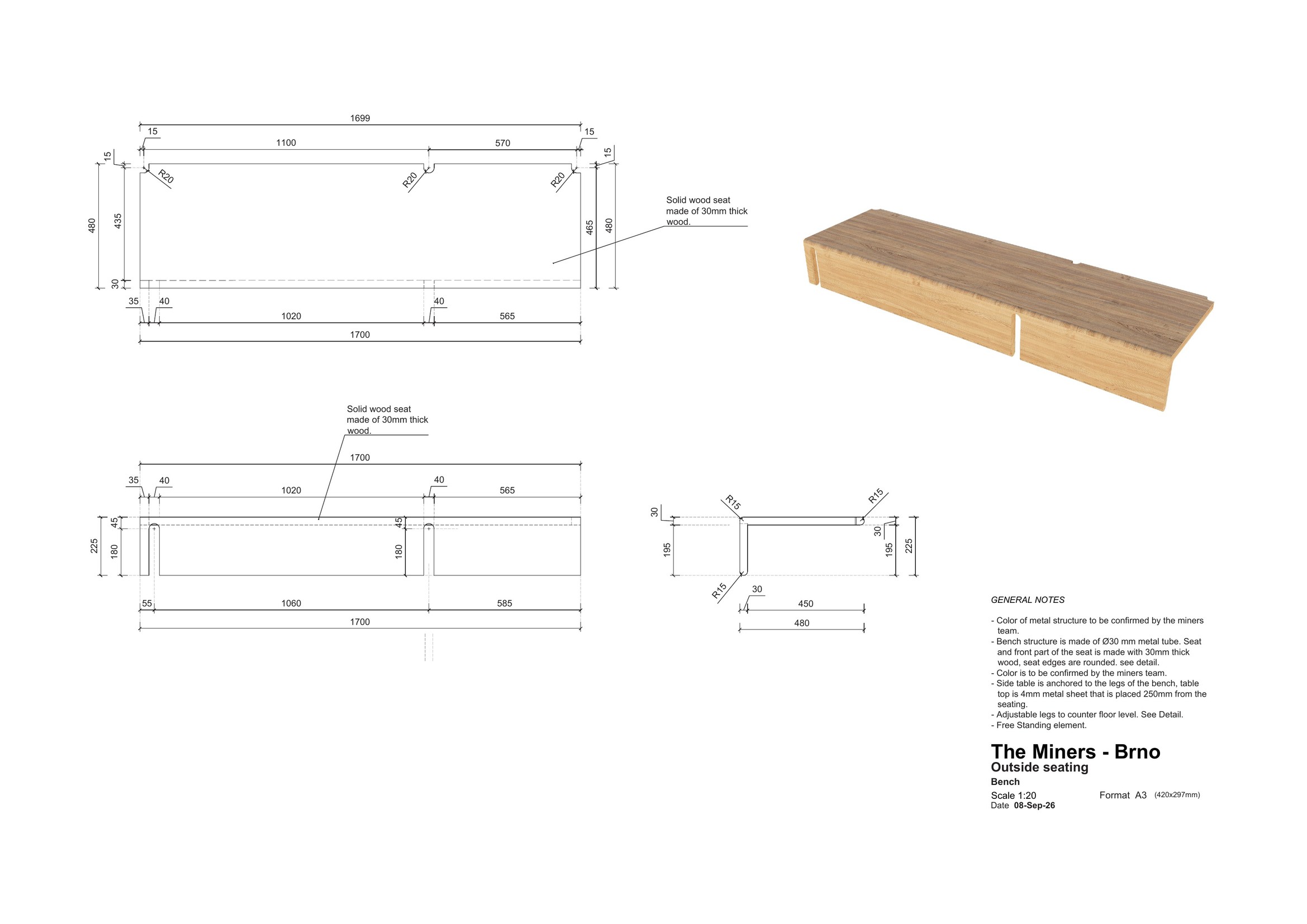

The Miners, The Bench: Seat

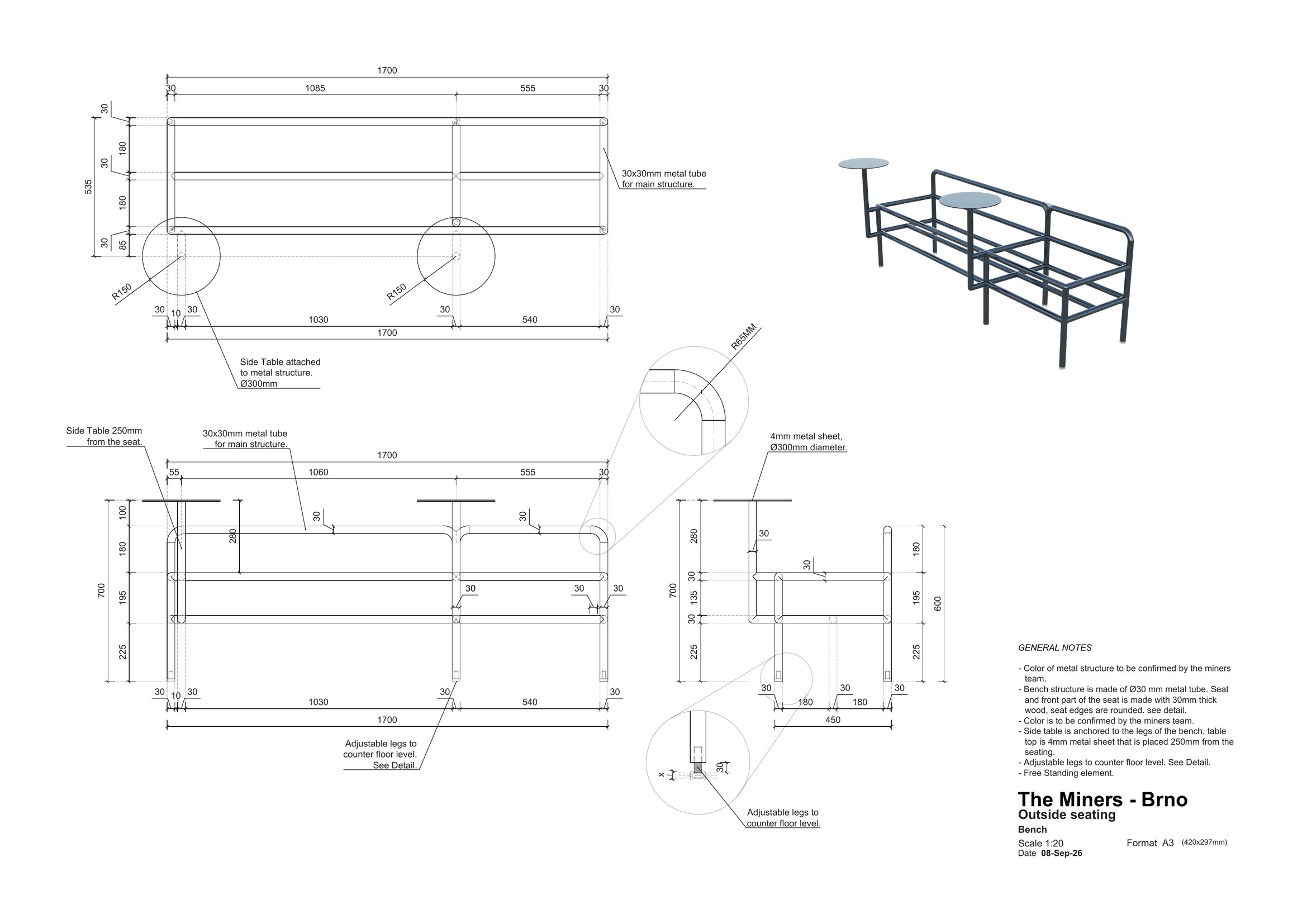

The Miners, The Bench: Structure
100%
02 Renders

A closer look at the finished bench, rendered from different angles and settings.

Render of The Miners bench, view 1
Render of The Miners bench, view 2
Render of The Miners bench, view 3
Render of The Miners bench, view 4
Render of The Miners bench, view 5
Render of The Miners bench, view 6
03 Technical Drawings, Site by Site

A selection of the day-to-day technical drawings I produce for these renovations, one set per location. Pick a location, then a category, then scroll or pinch to zoom into a drawing and drag to pan around it.

Barcelona · Spain
Franchise renovation, technical fit-out drawings
Scroll or pinch to zoom · Drag to pan

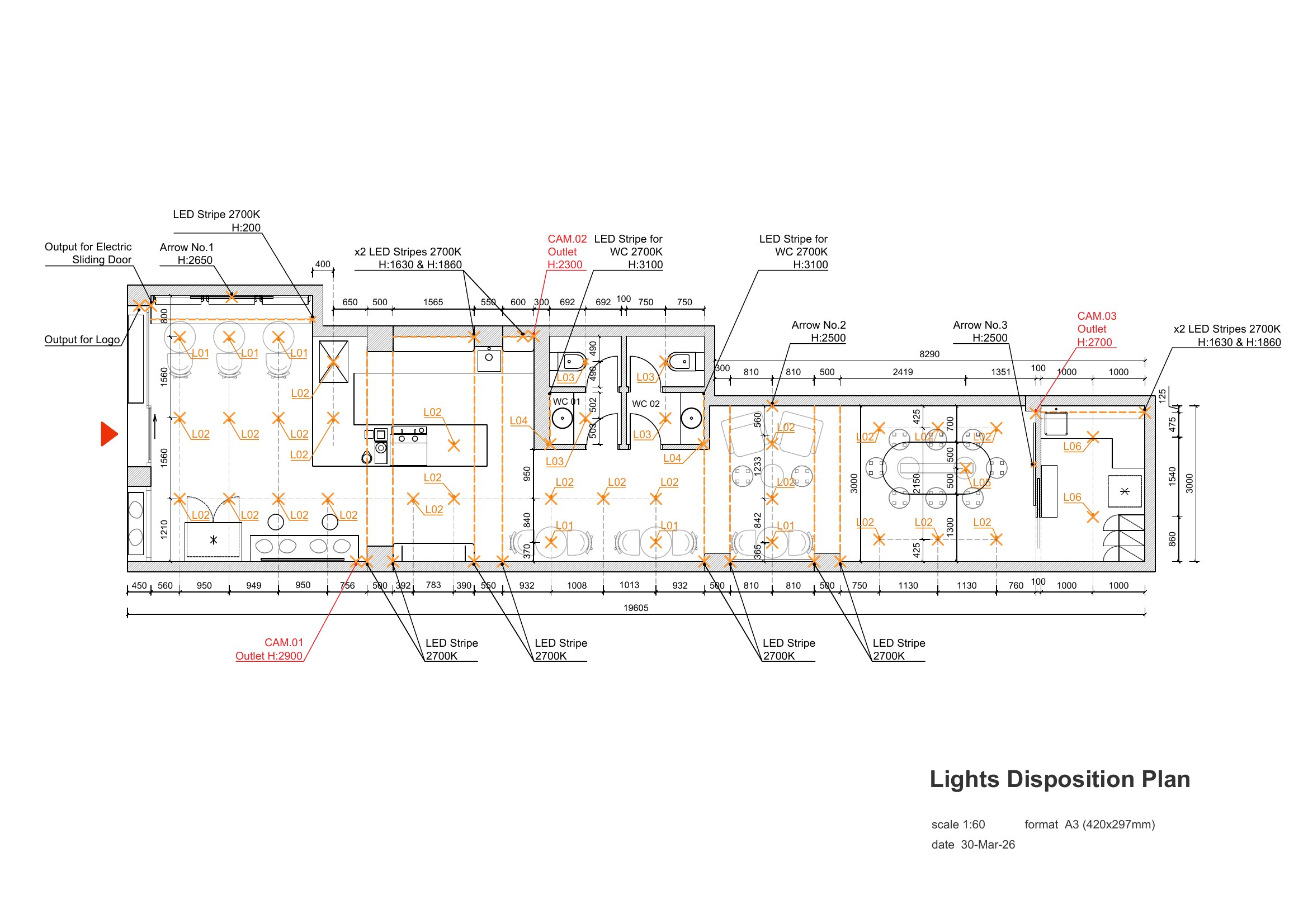

The Miners, Barcelona · Spain: Disposition Plan, Lights

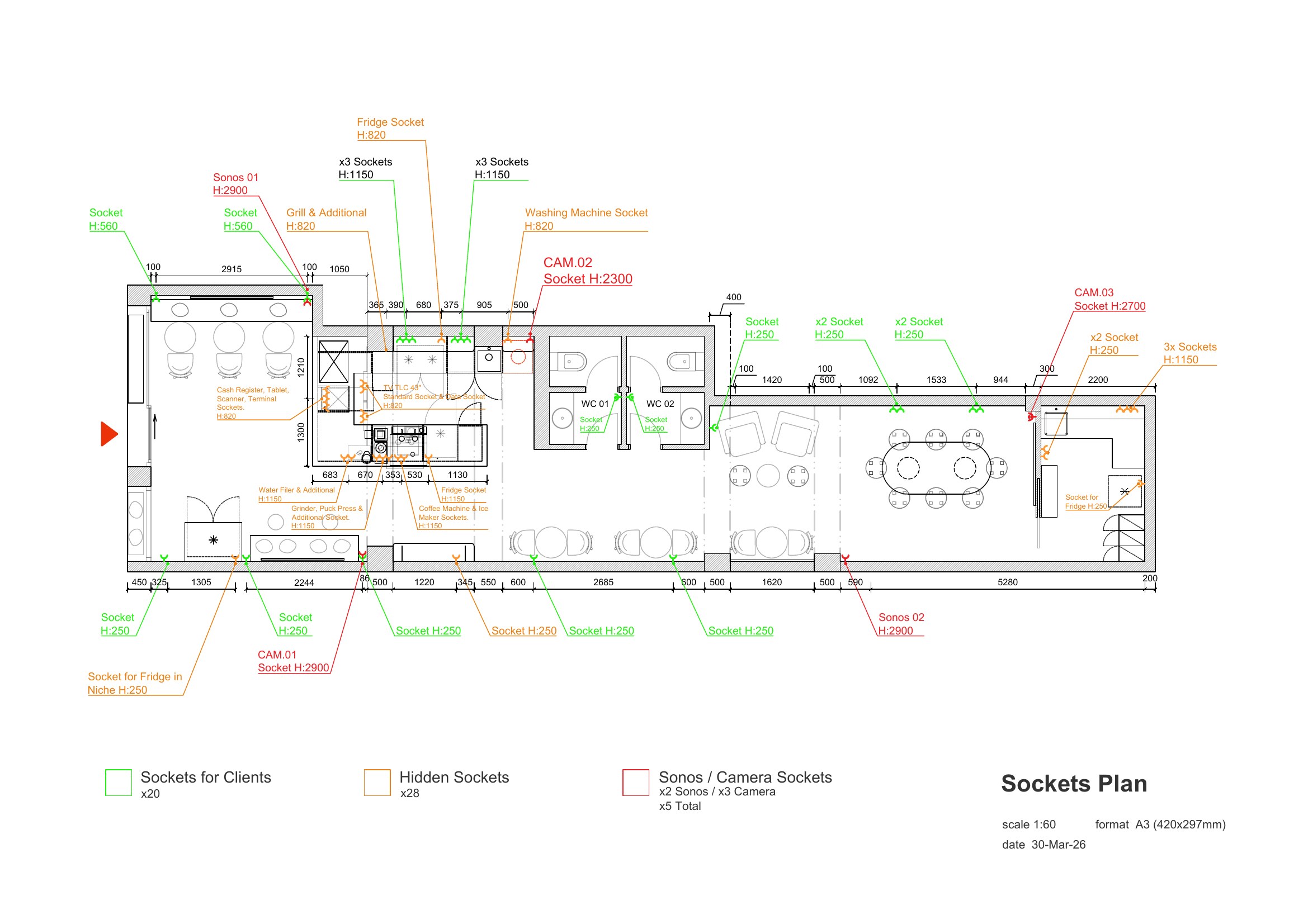

The Miners, Barcelona · Spain: Disposition Plan, Sockets, Color Coded

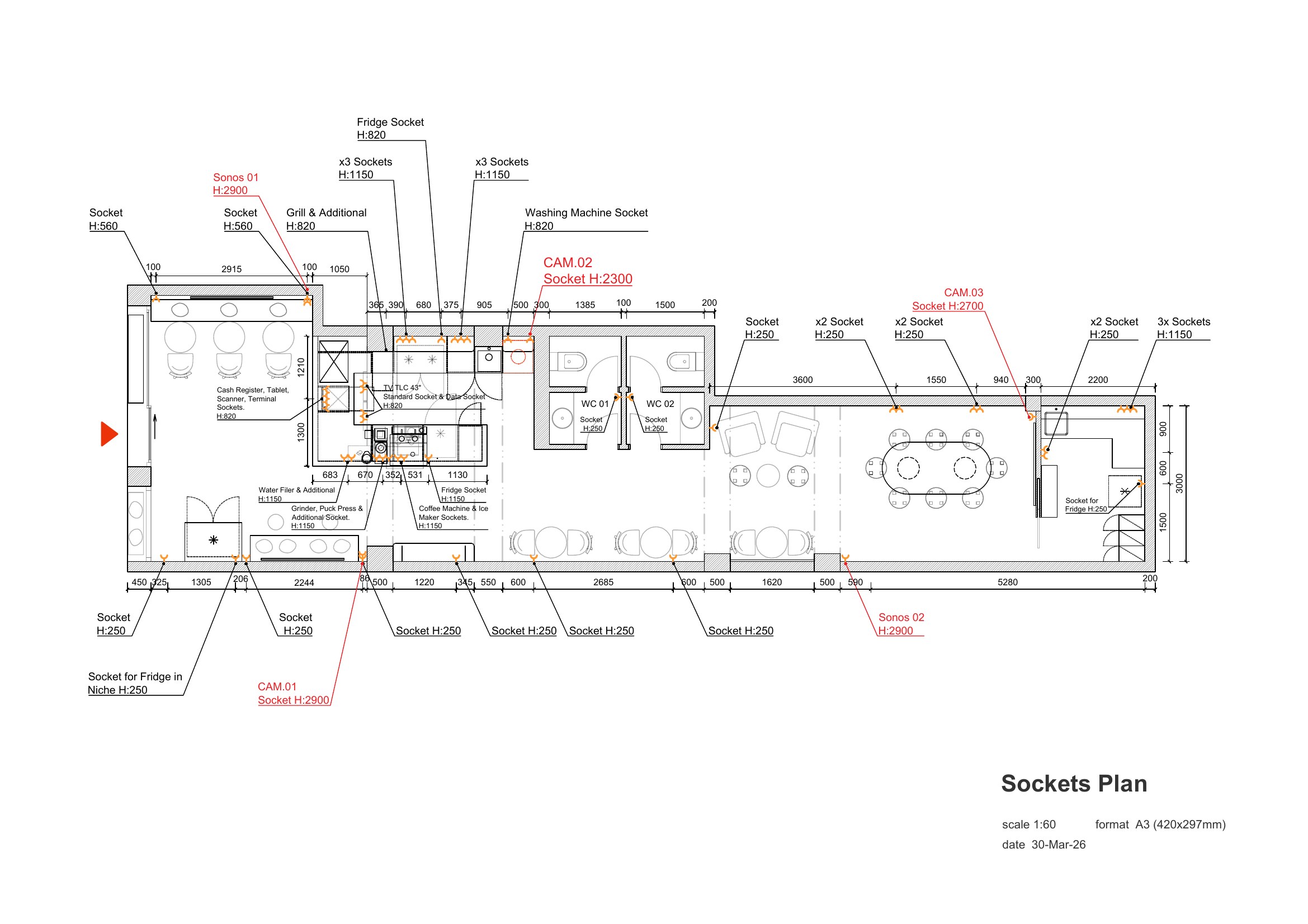

The Miners, Barcelona · Spain: Disposition Plan, Sockets

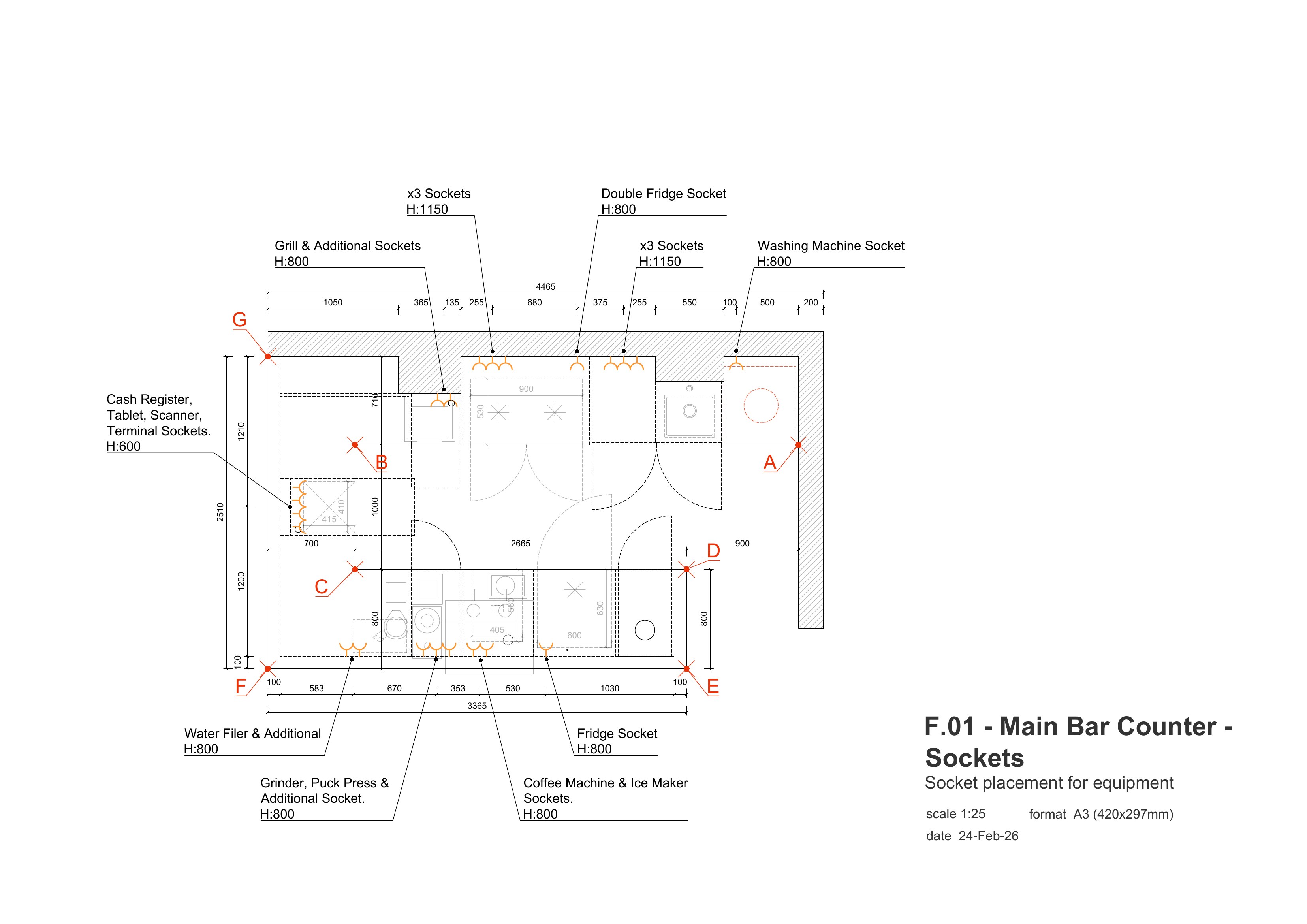

The Miners, Barcelona · Spain: Main Bar, Sockets

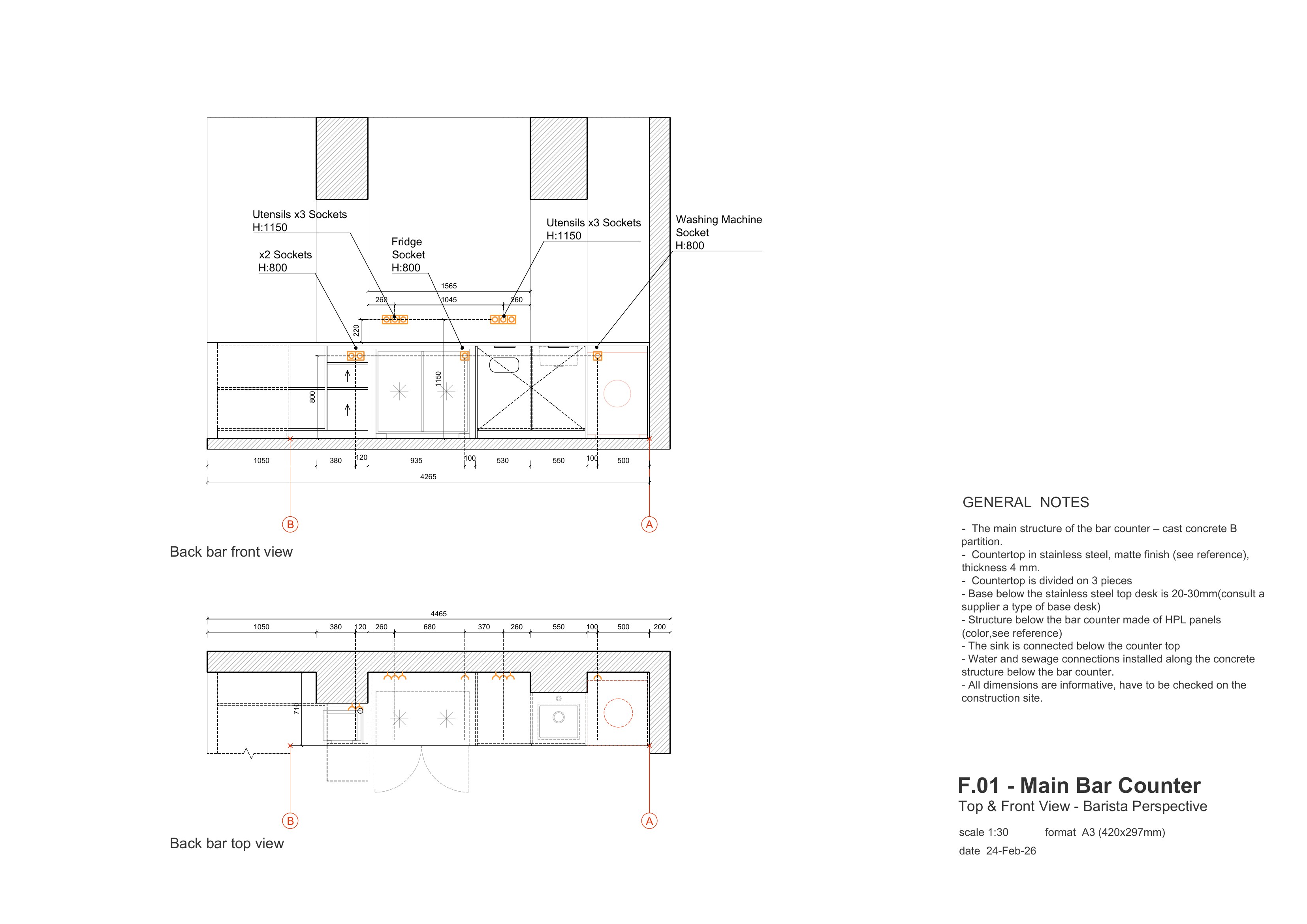

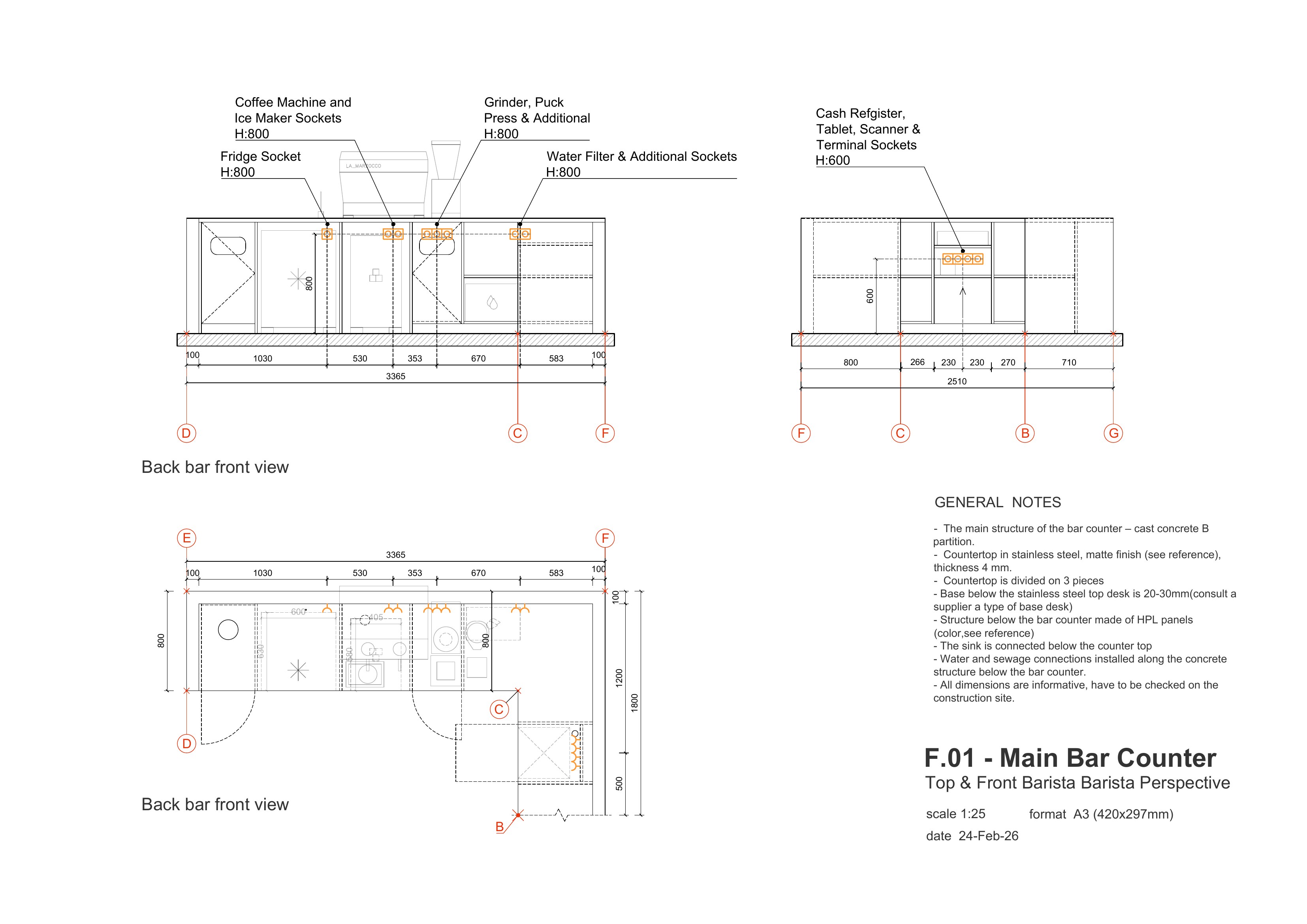

The Miners, Barcelona · Spain: Main Bar, Barista View, Sockets (1)
The Miners, Barcelona · Spain: Main Bar, Barista View, Sockets (2)

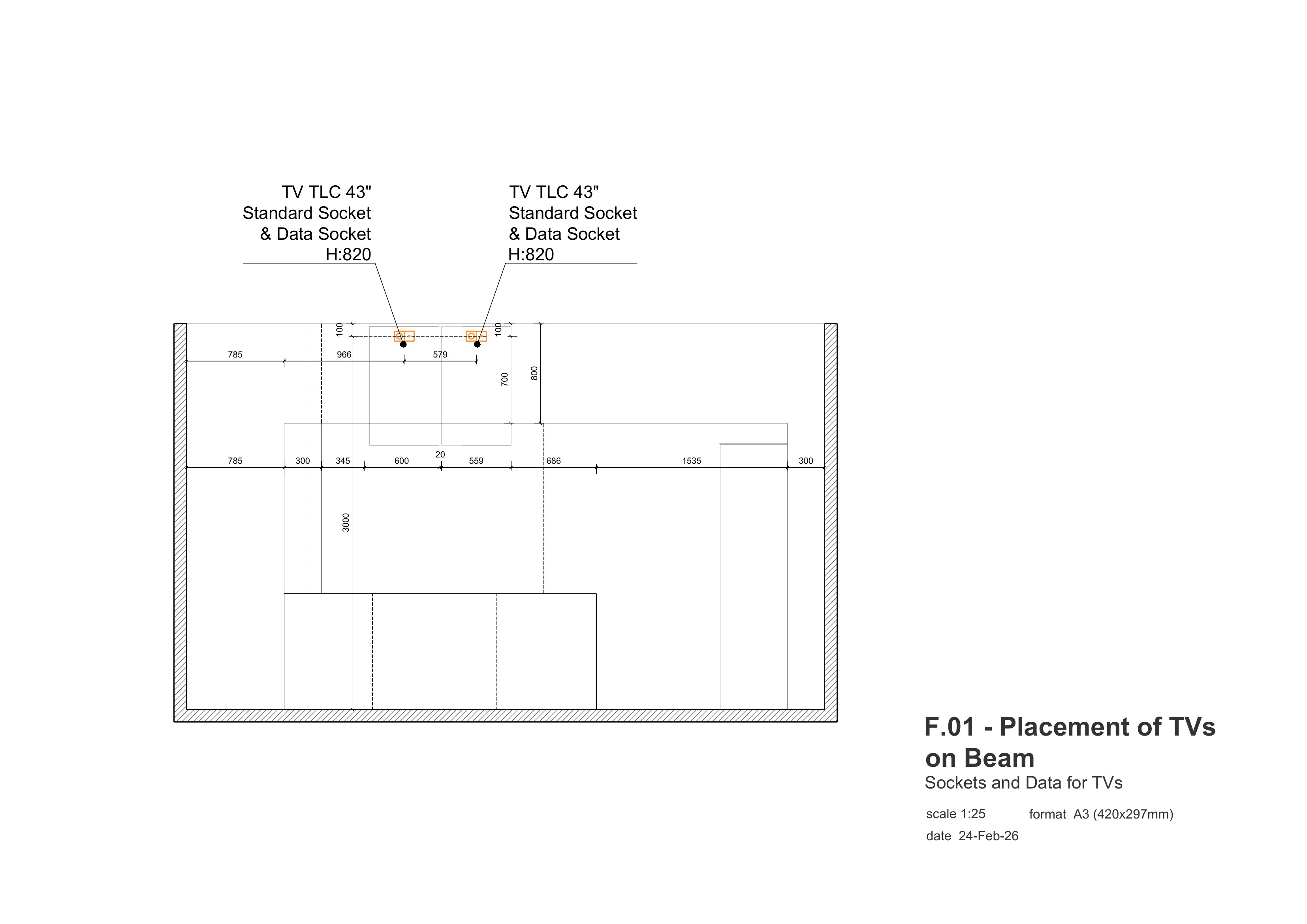

The Miners, Barcelona · Spain: Main Bar, TV Placement on Beams

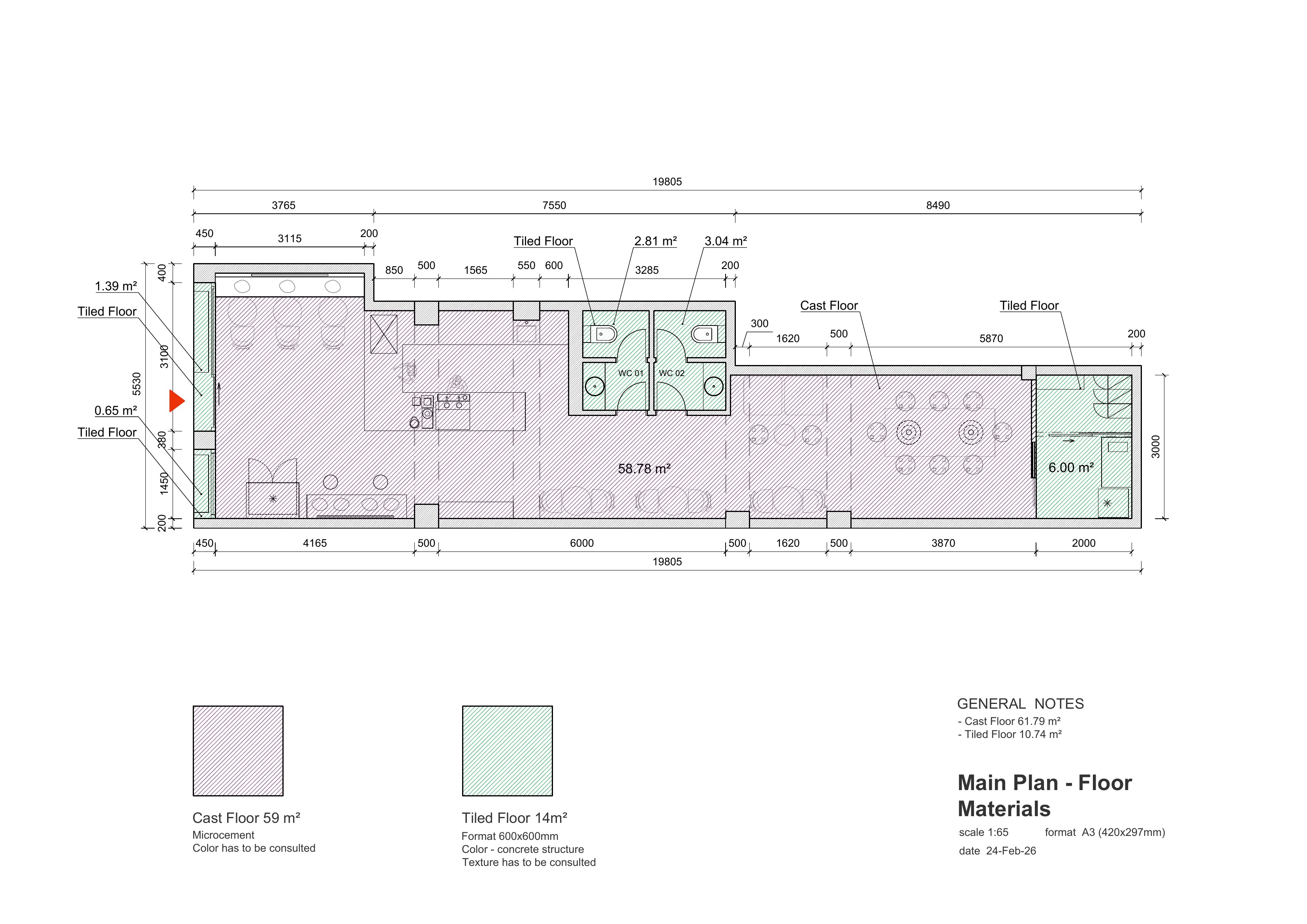

The Miners, Barcelona · Spain: Floors, Material Definition

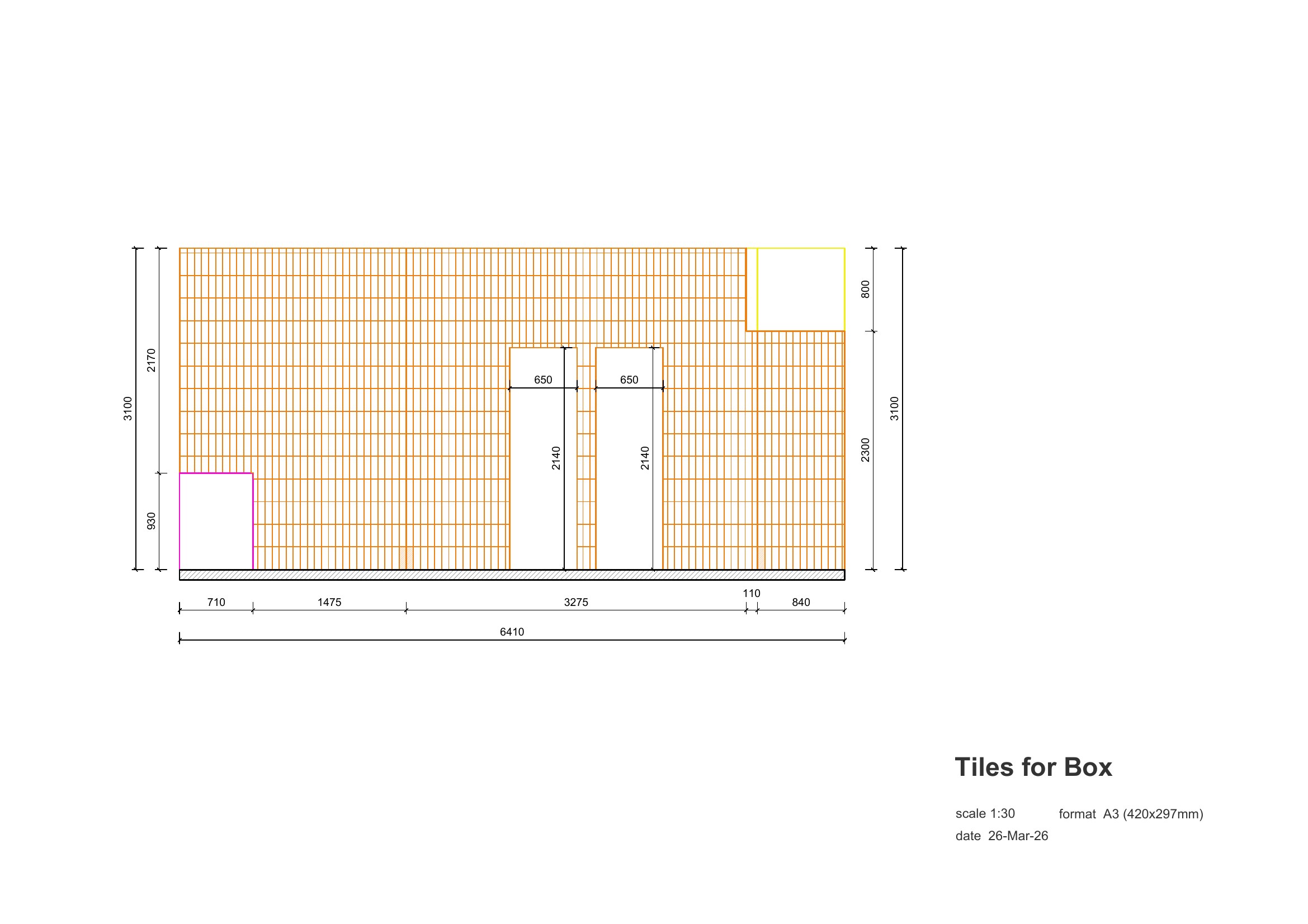

The Miners, Barcelona · Spain: Walls Elevation, Toilets Box

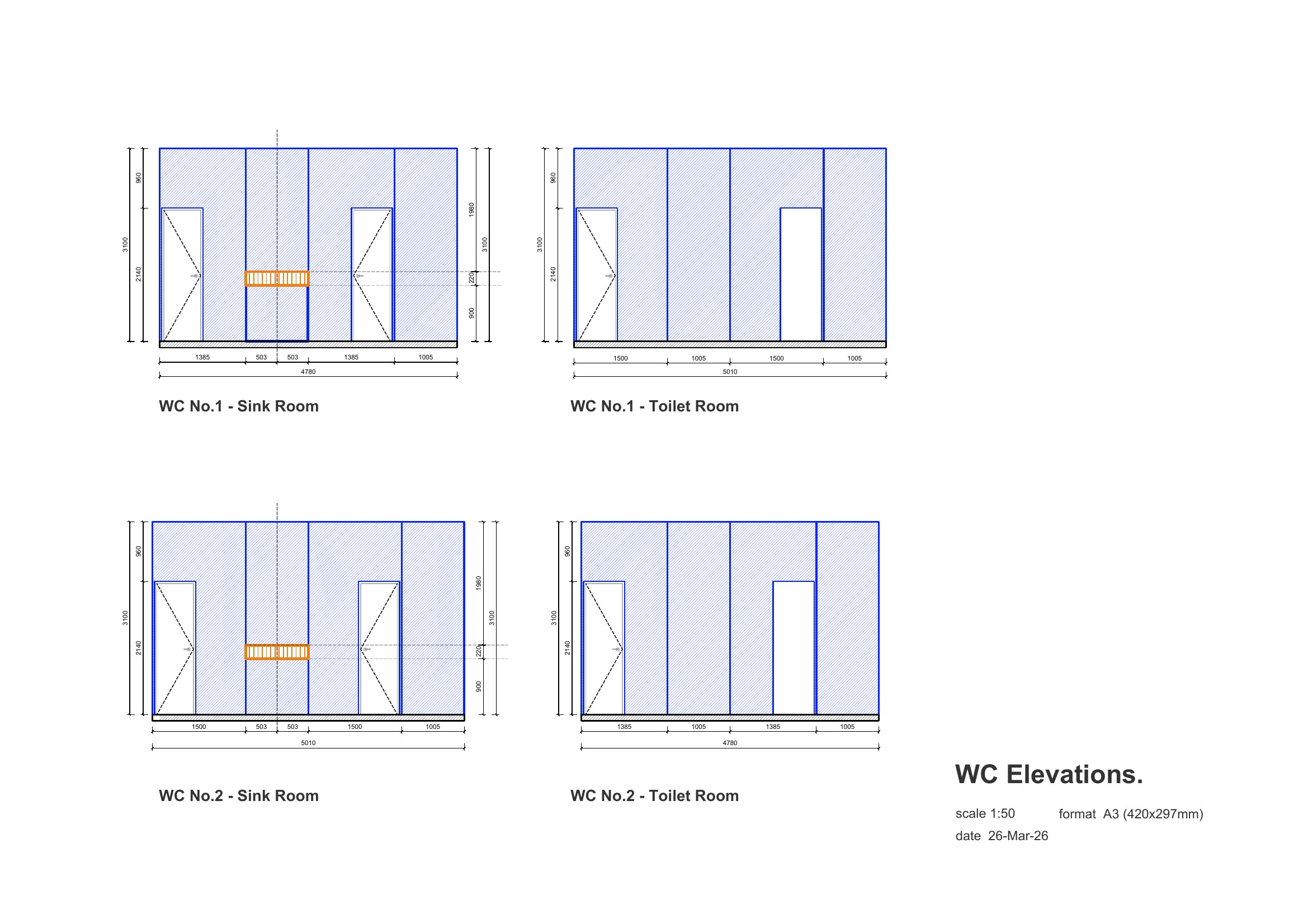

The Miners, Barcelona · Spain: Walls Elevation, WC

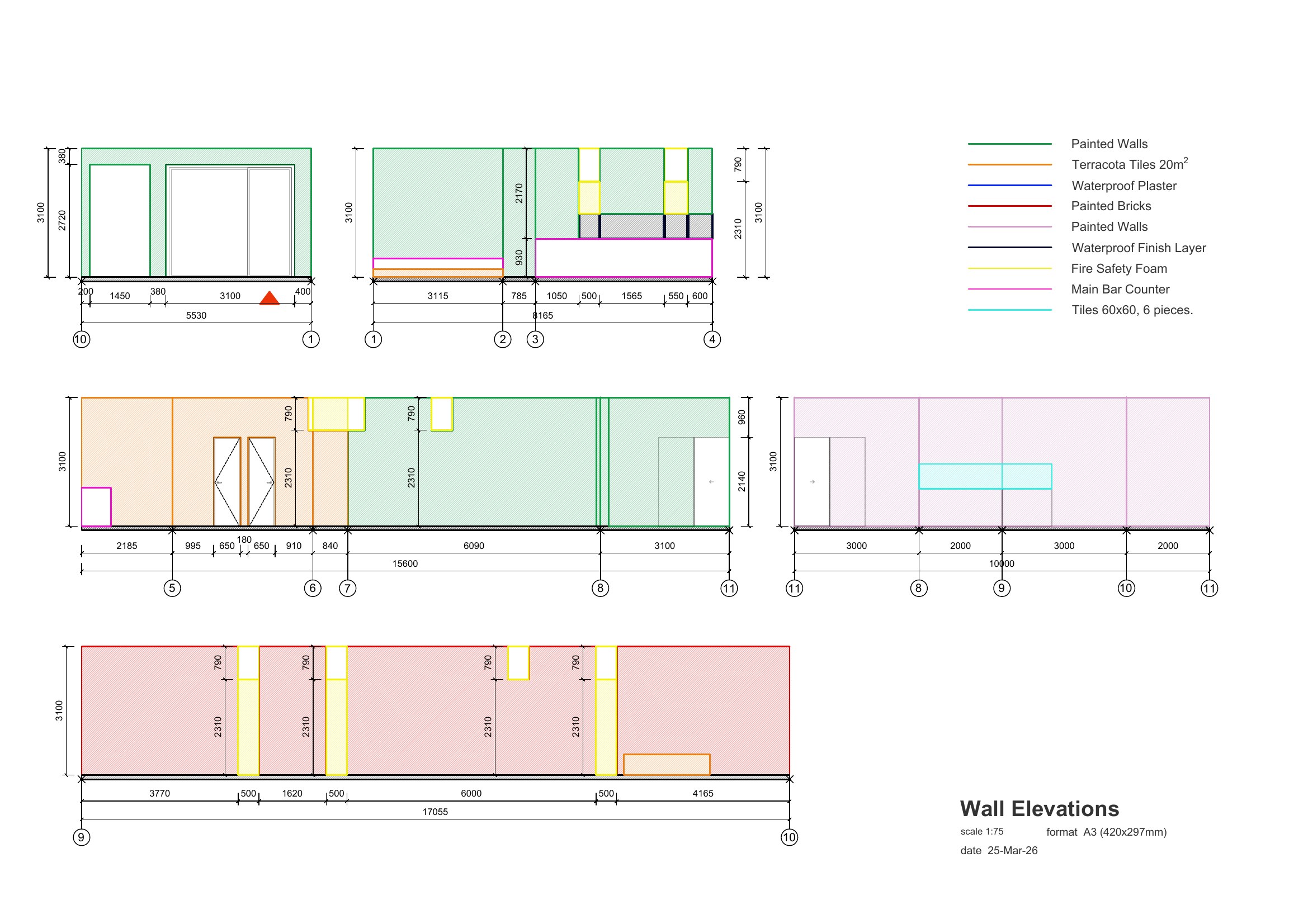

The Miners, Barcelona · Spain: Walls Elevation, Material Definition

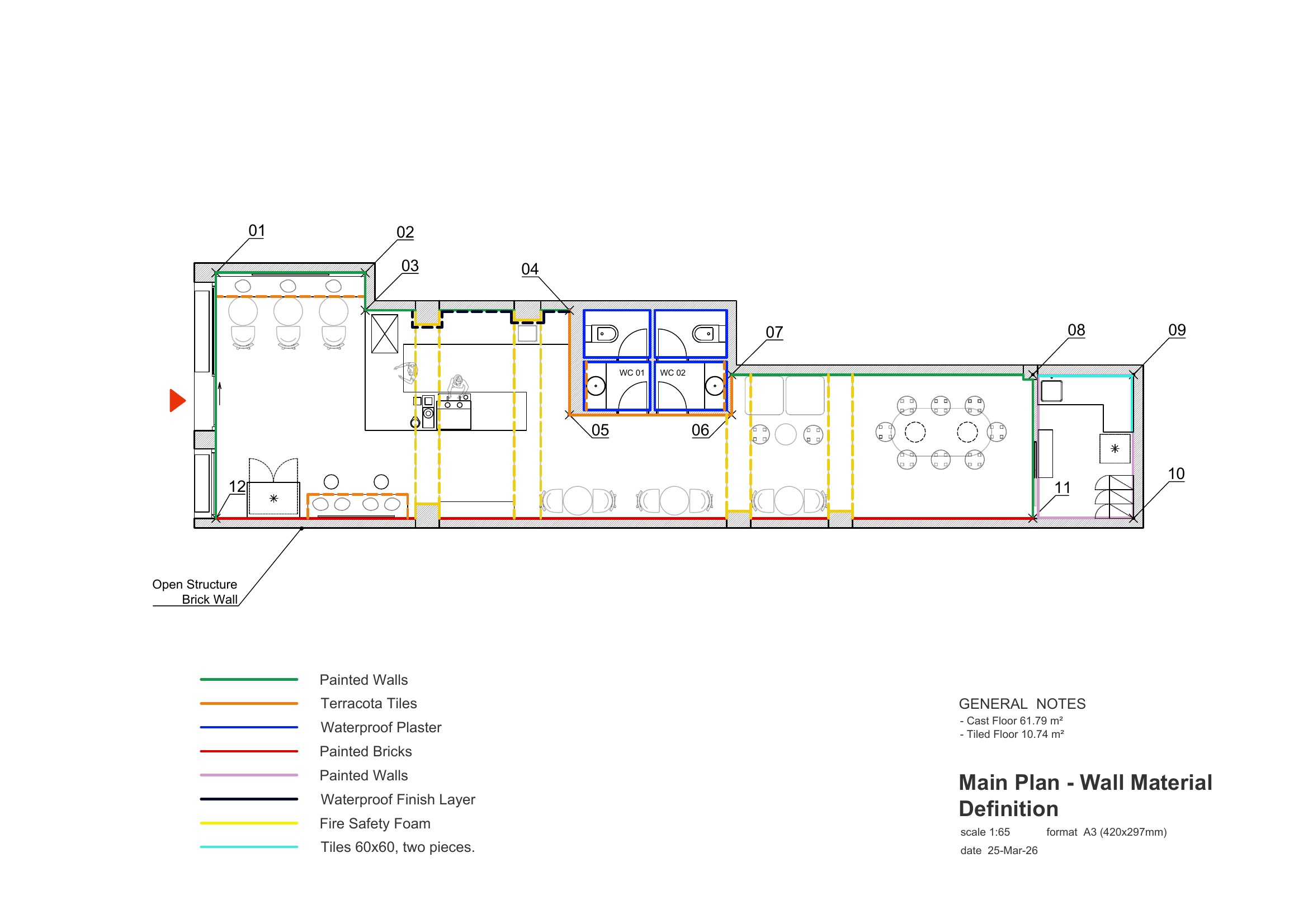

The Miners, Barcelona · Spain: Walls, Material Definition
100%
Madrid · Spain
Franchise renovation, technical fit-out drawings
Scroll or pinch to zoom · Drag to pan

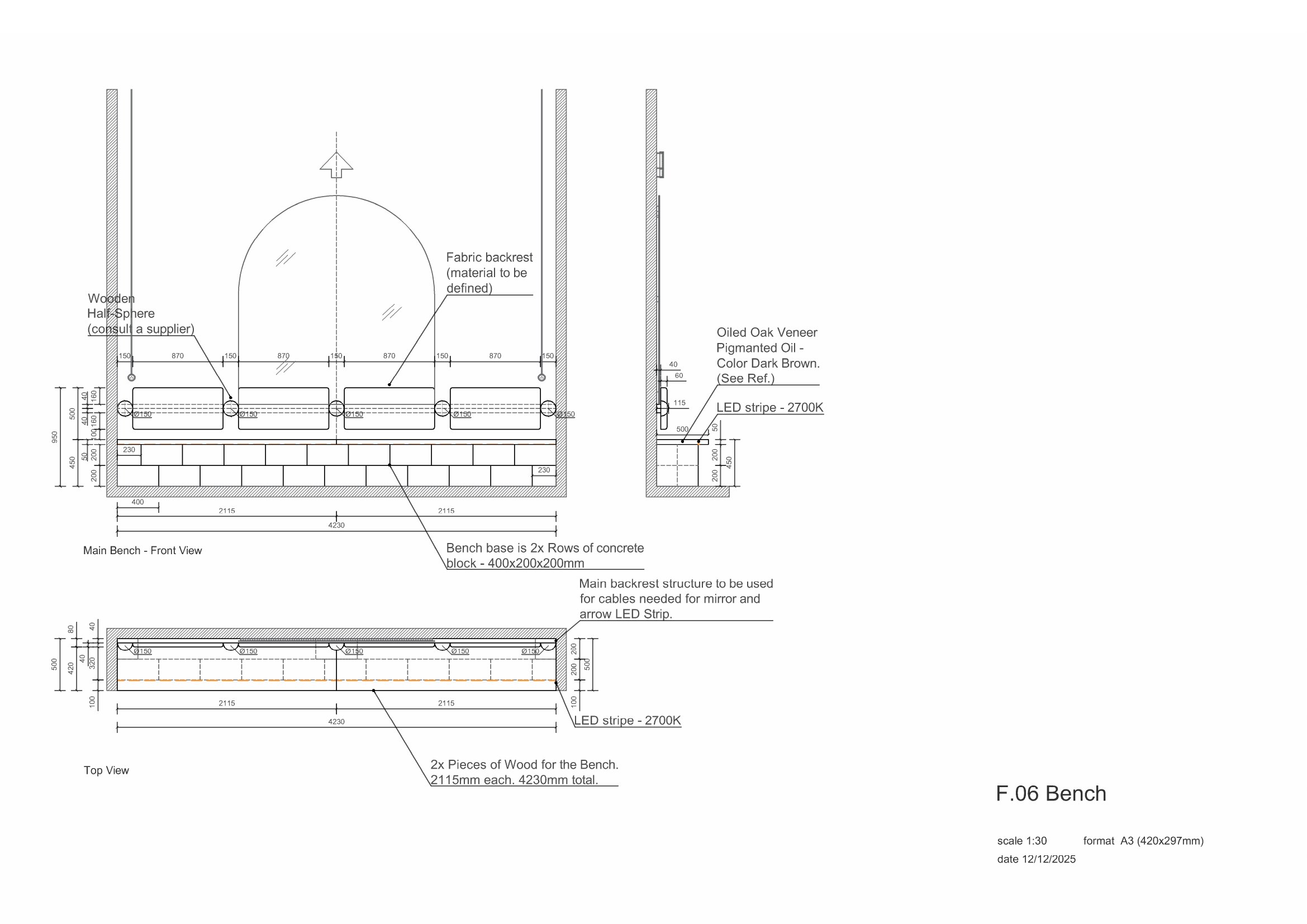

The Miners, Madrid · Spain: Bench, Bench

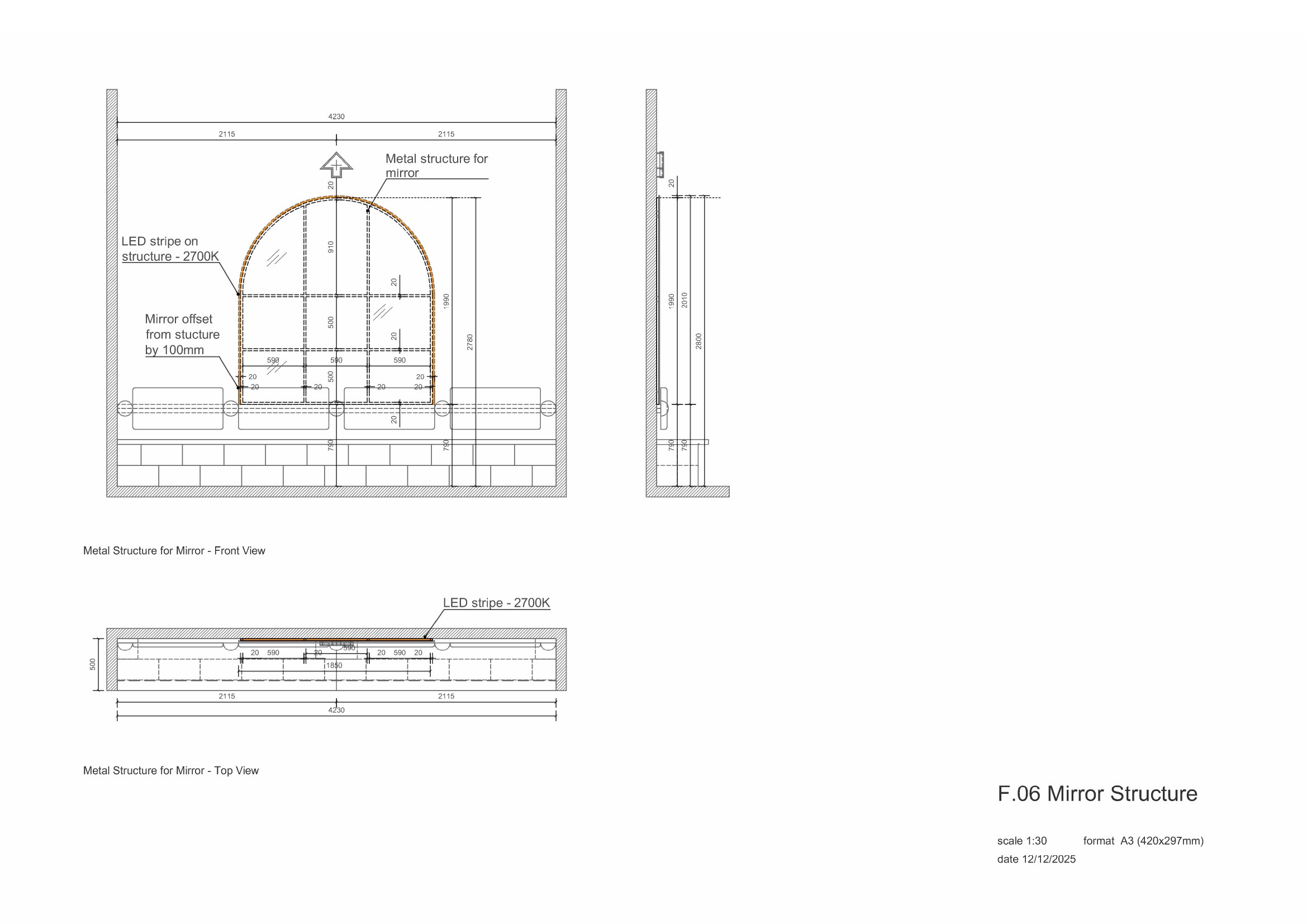

The Miners, Madrid · Spain: Mirror in Steel Frame, Structure

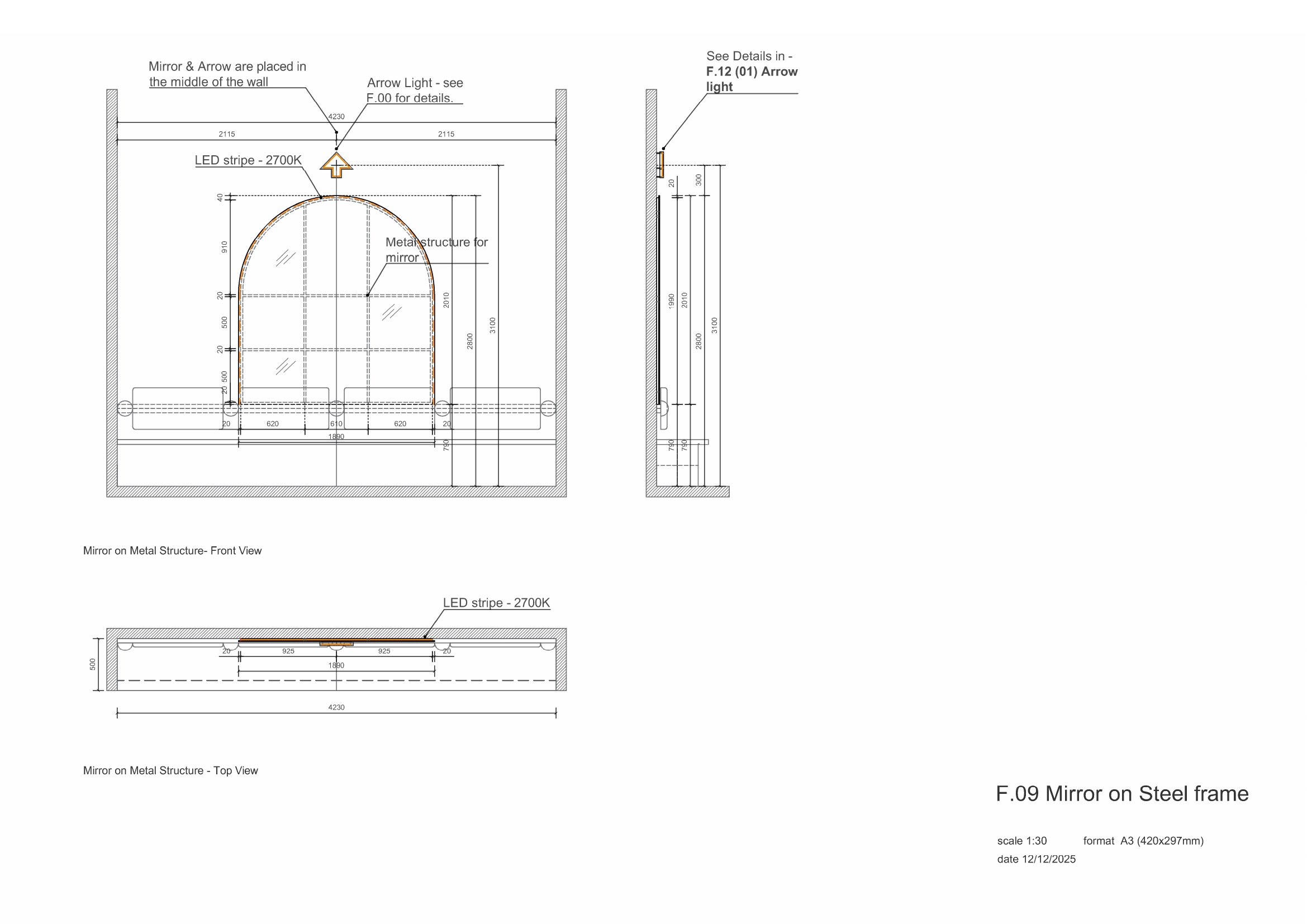

The Miners, Madrid · Spain: Mirror in Steel Frame, Overview
100%
Valencia · Spain
Franchise renovation, technical fit-out drawings
Scroll or pinch to zoom · Drag to pan

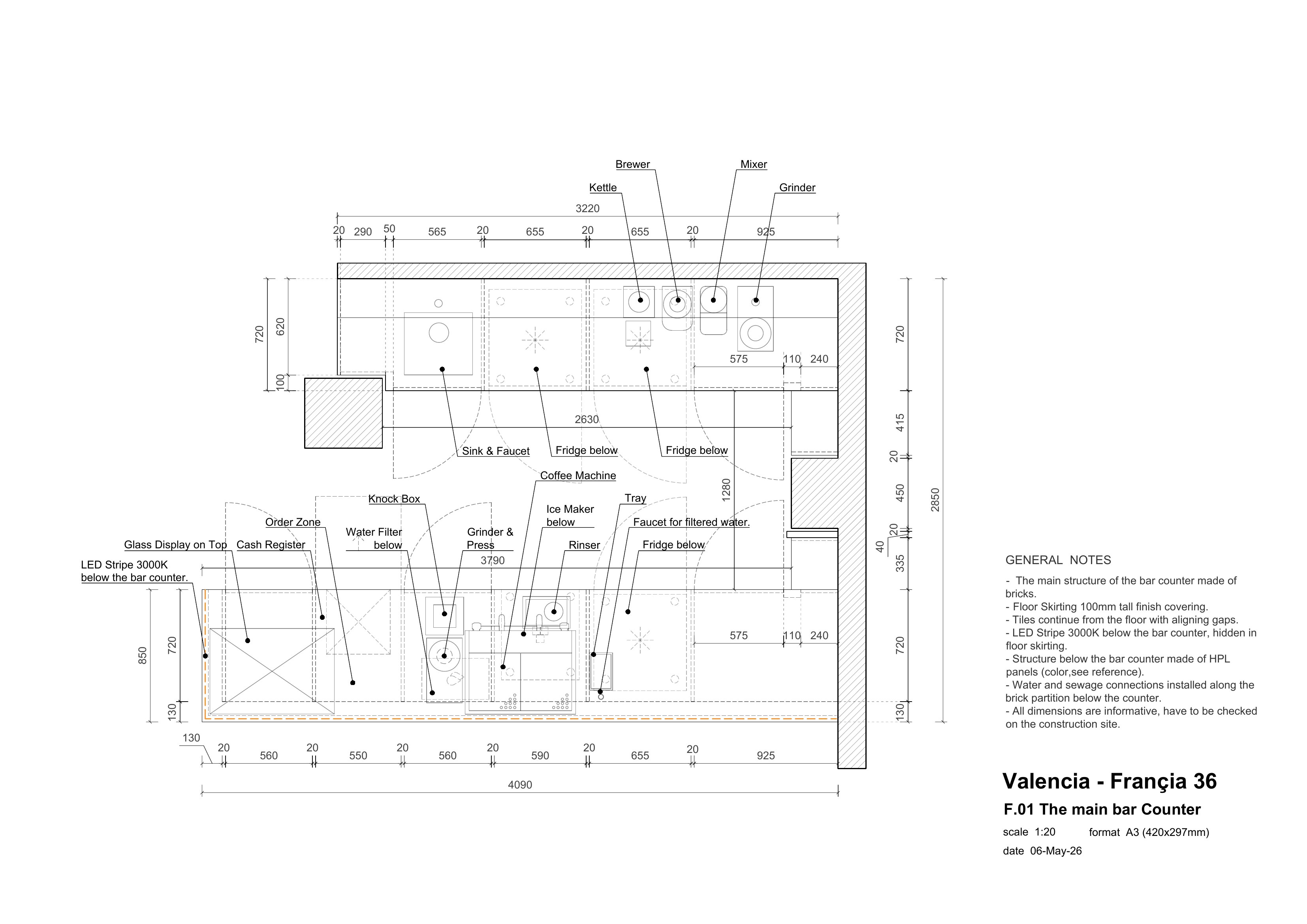

The Miners, Valencia · Spain: Main Bar, Overview

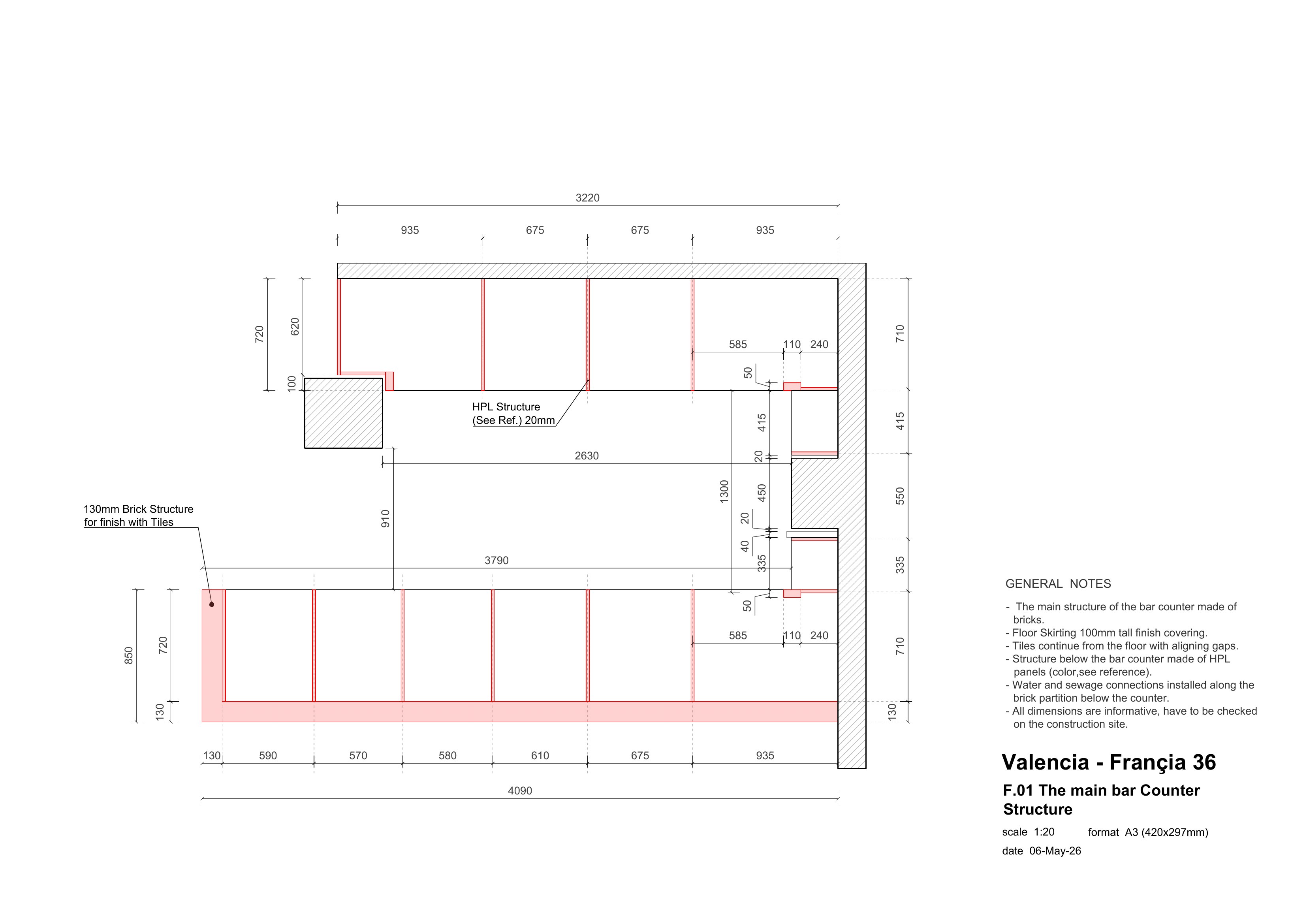

The Miners, Valencia · Spain: Main Bar, Structure

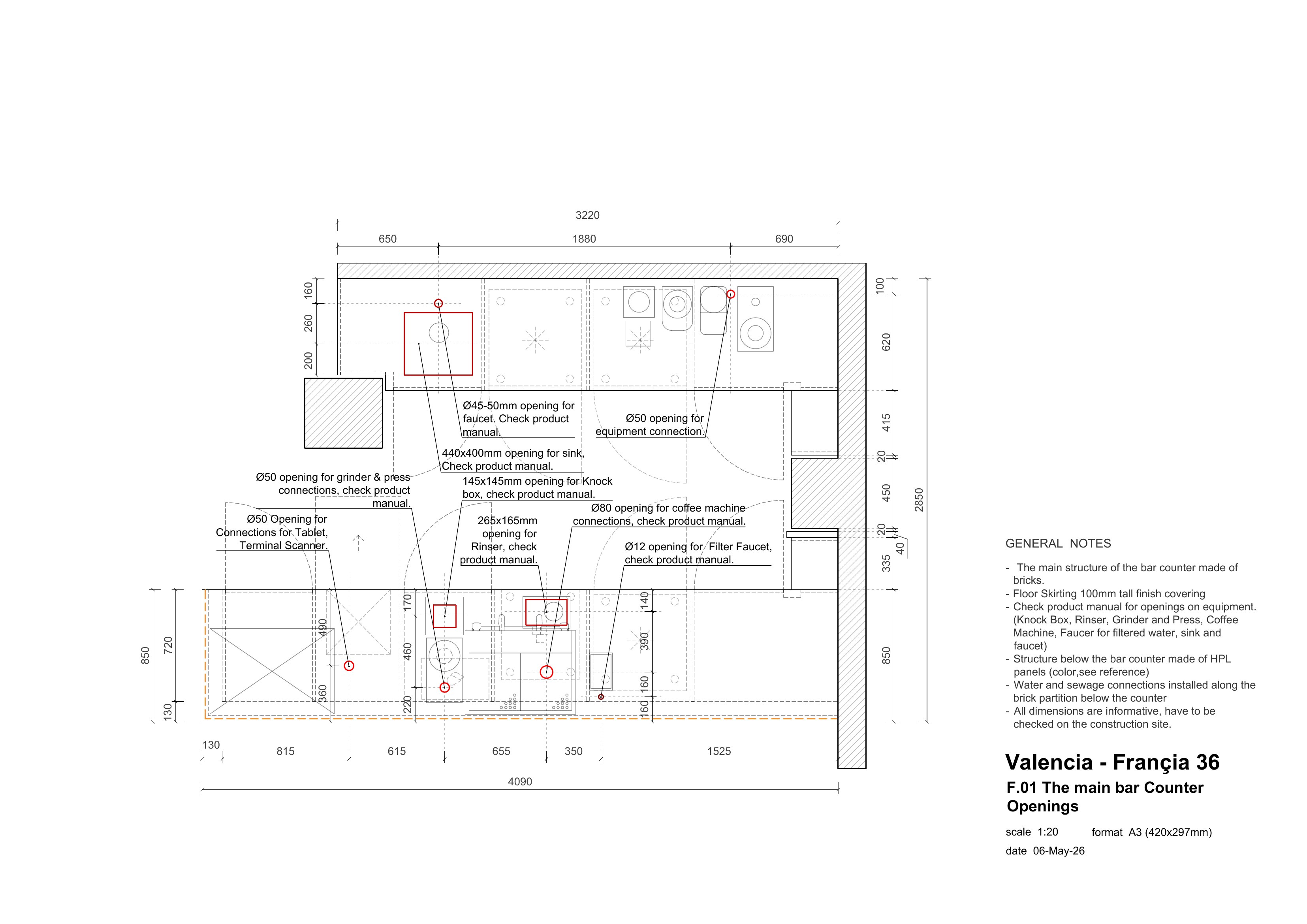

The Miners, Valencia · Spain: Main Bar, Openings

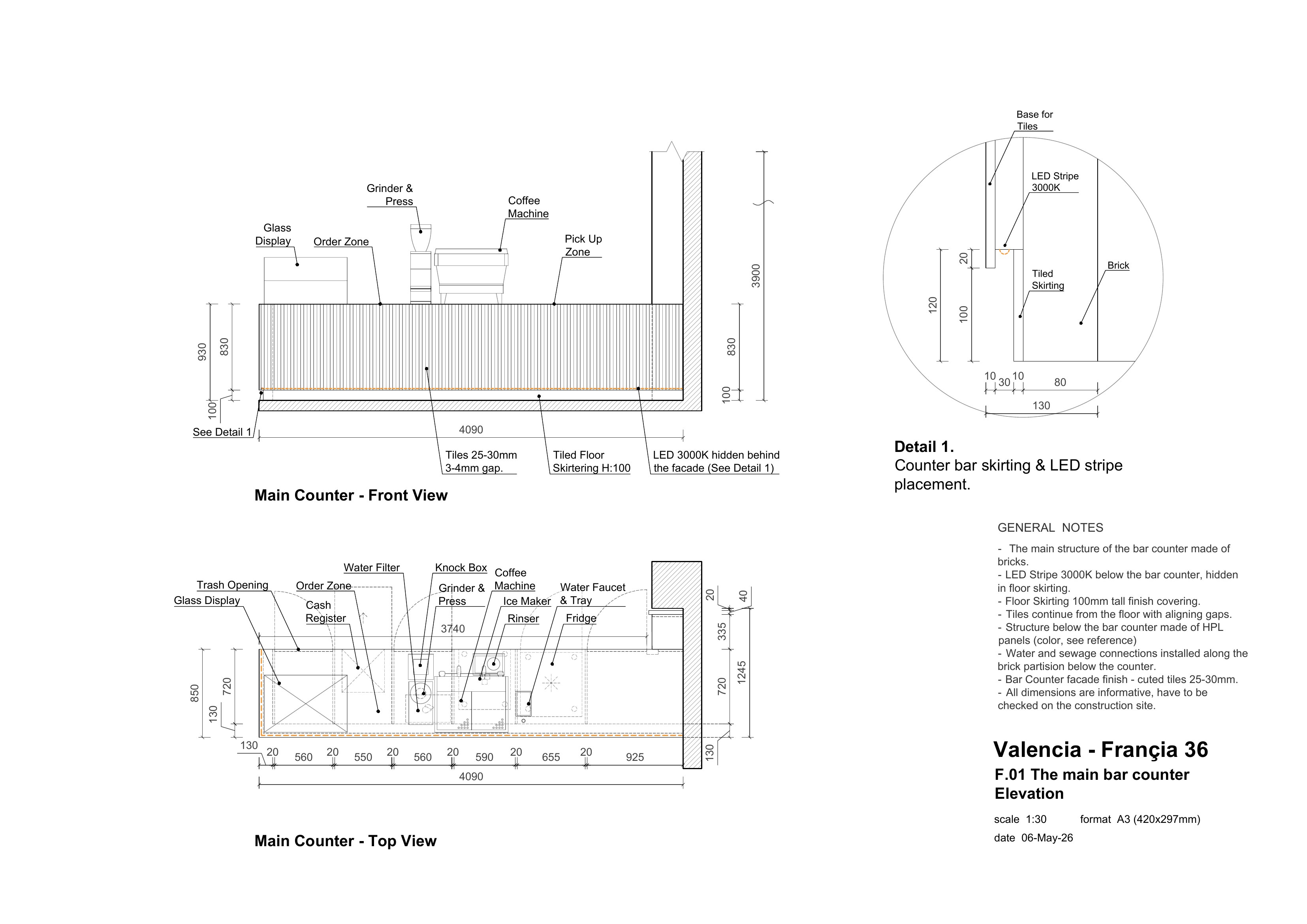

The Miners, Valencia · Spain: Main Bar, Elevation

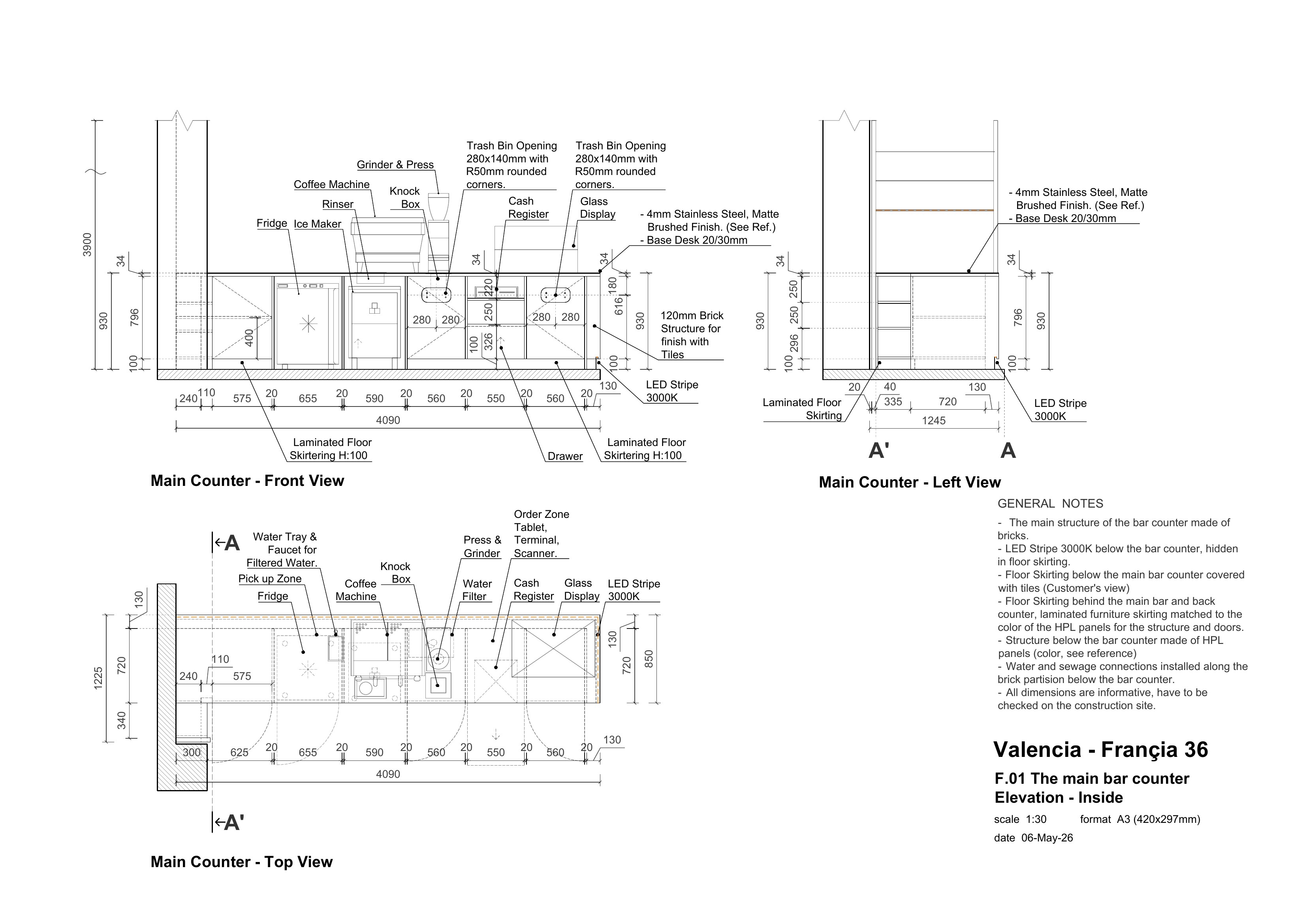

The Miners, Valencia · Spain: Main Bar, Elevation, Inside

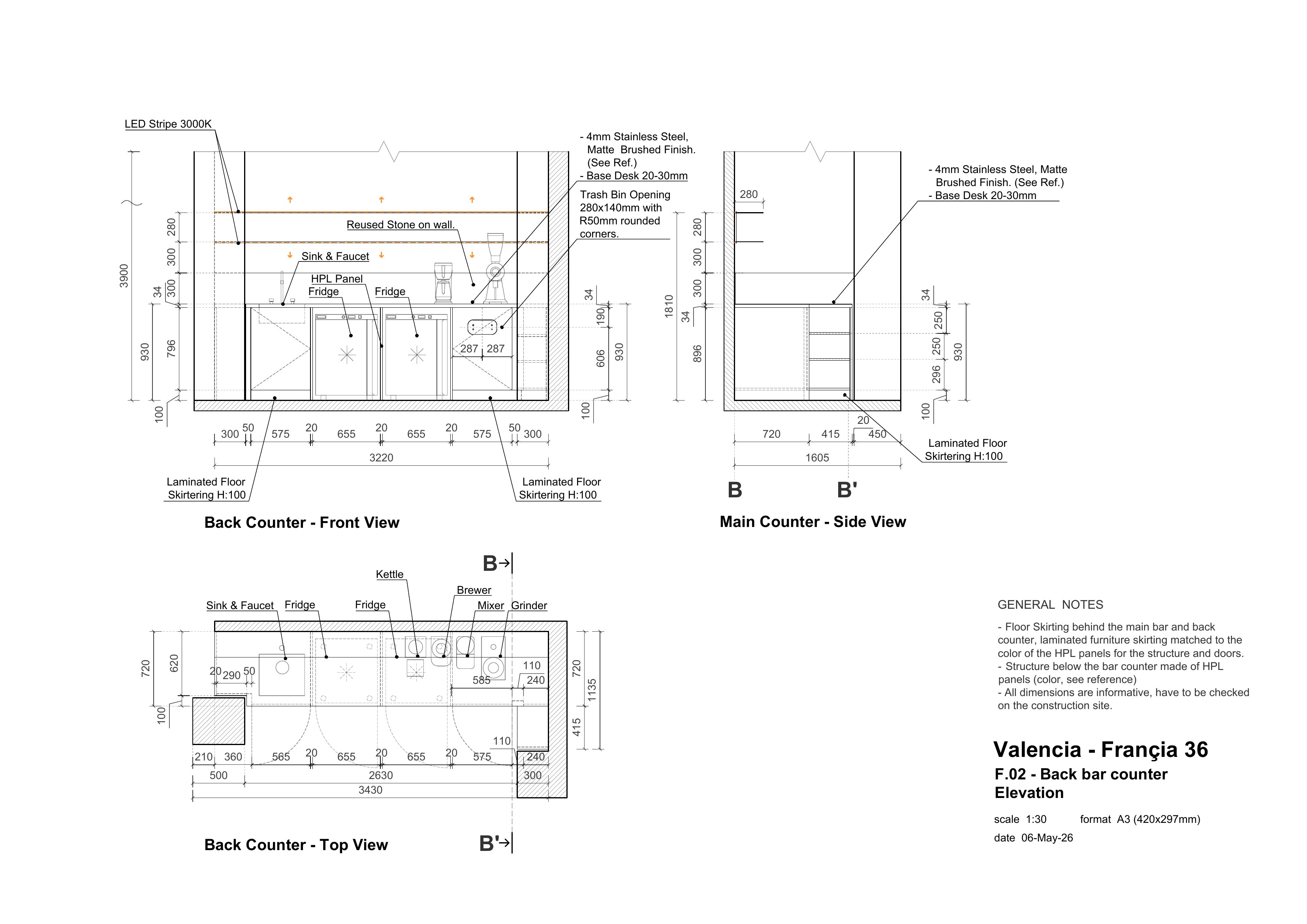

The Miners, Valencia · Spain: Back Bar, Overview

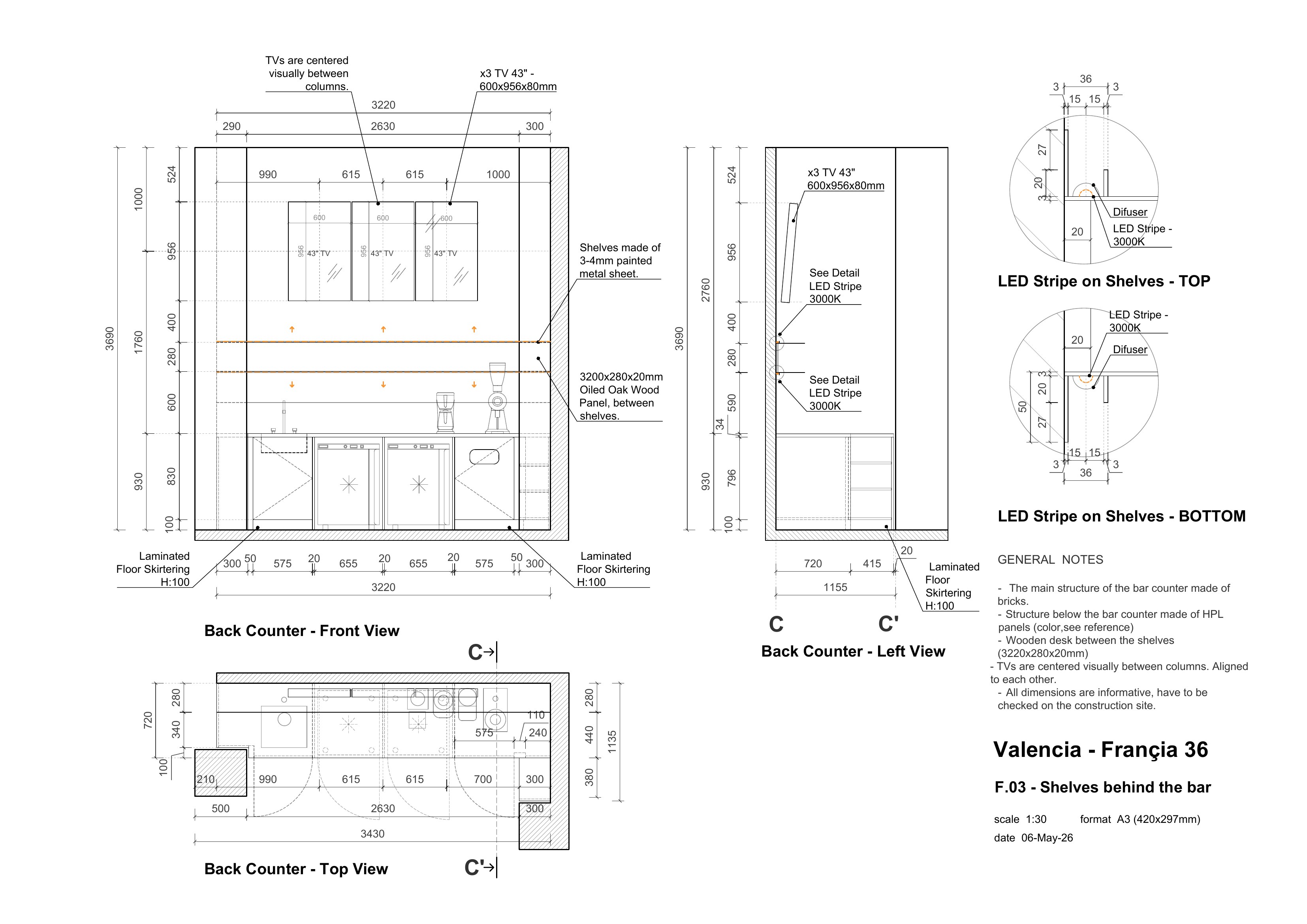

The Miners, Valencia · Spain: Back Bar, Shelves Behind the Bar

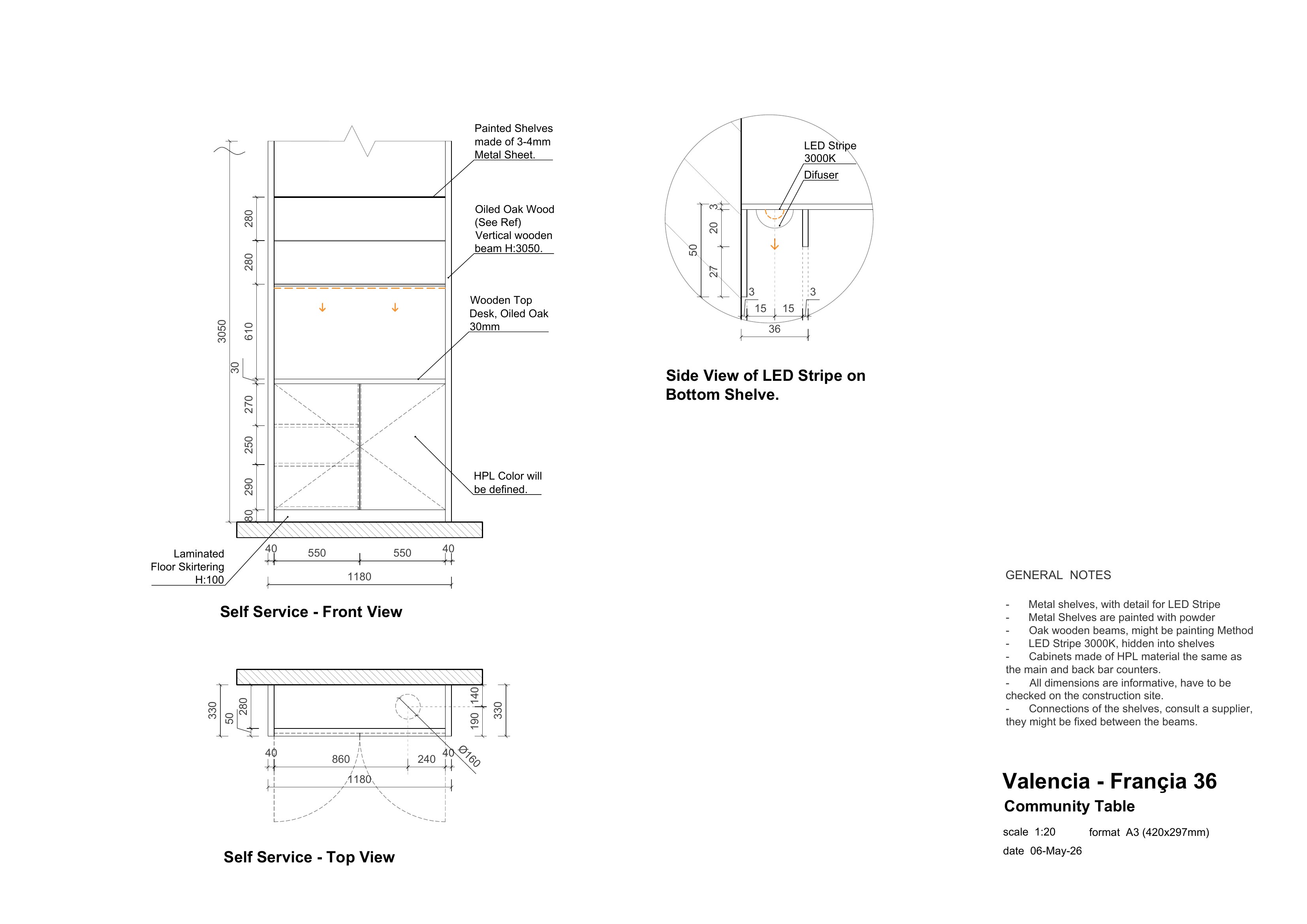

The Miners, Valencia · Spain: Self-Service & Retail Shelves, Overview

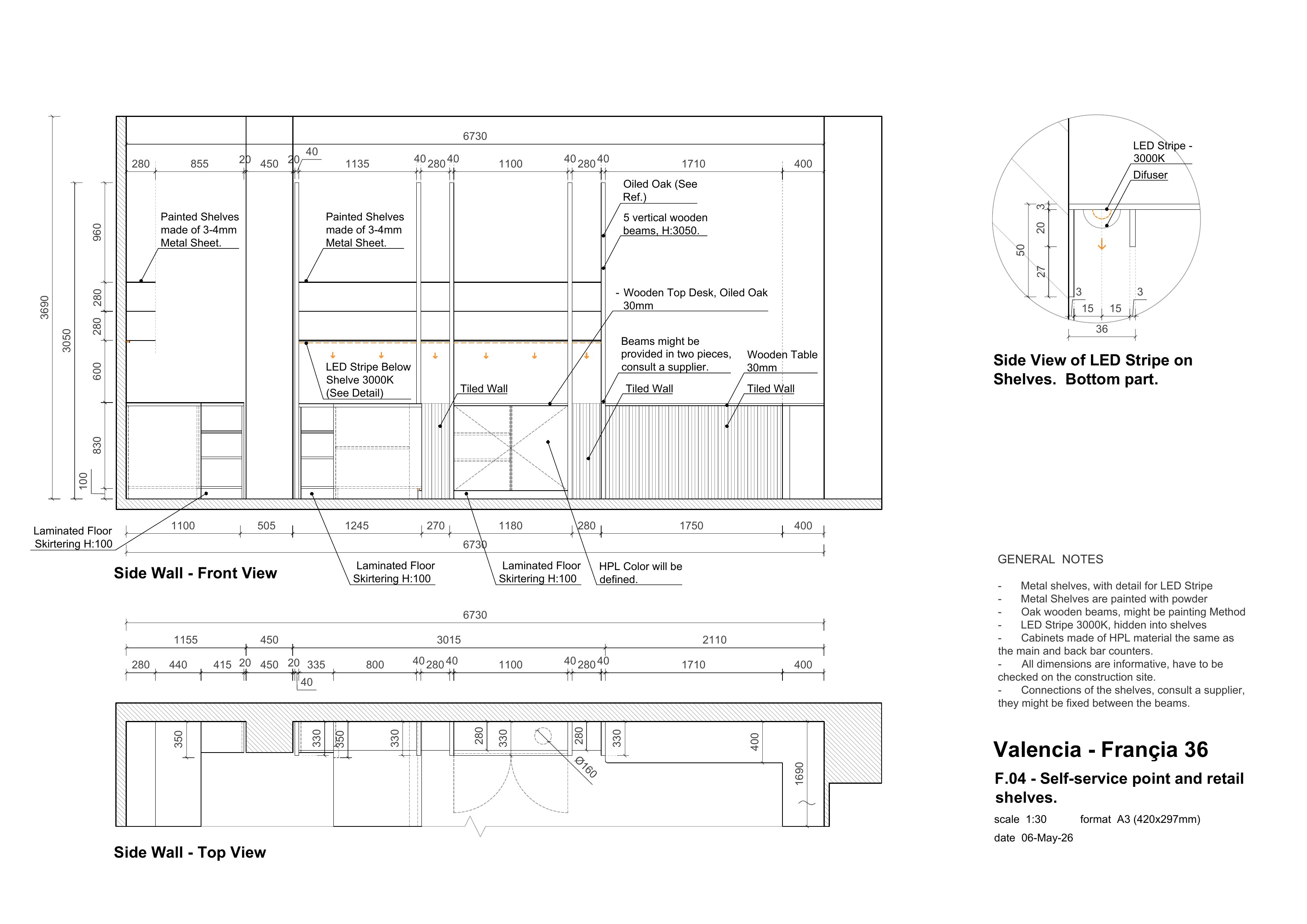

The Miners, Valencia · Spain: Self-Service & Retail Shelves, Side Wall

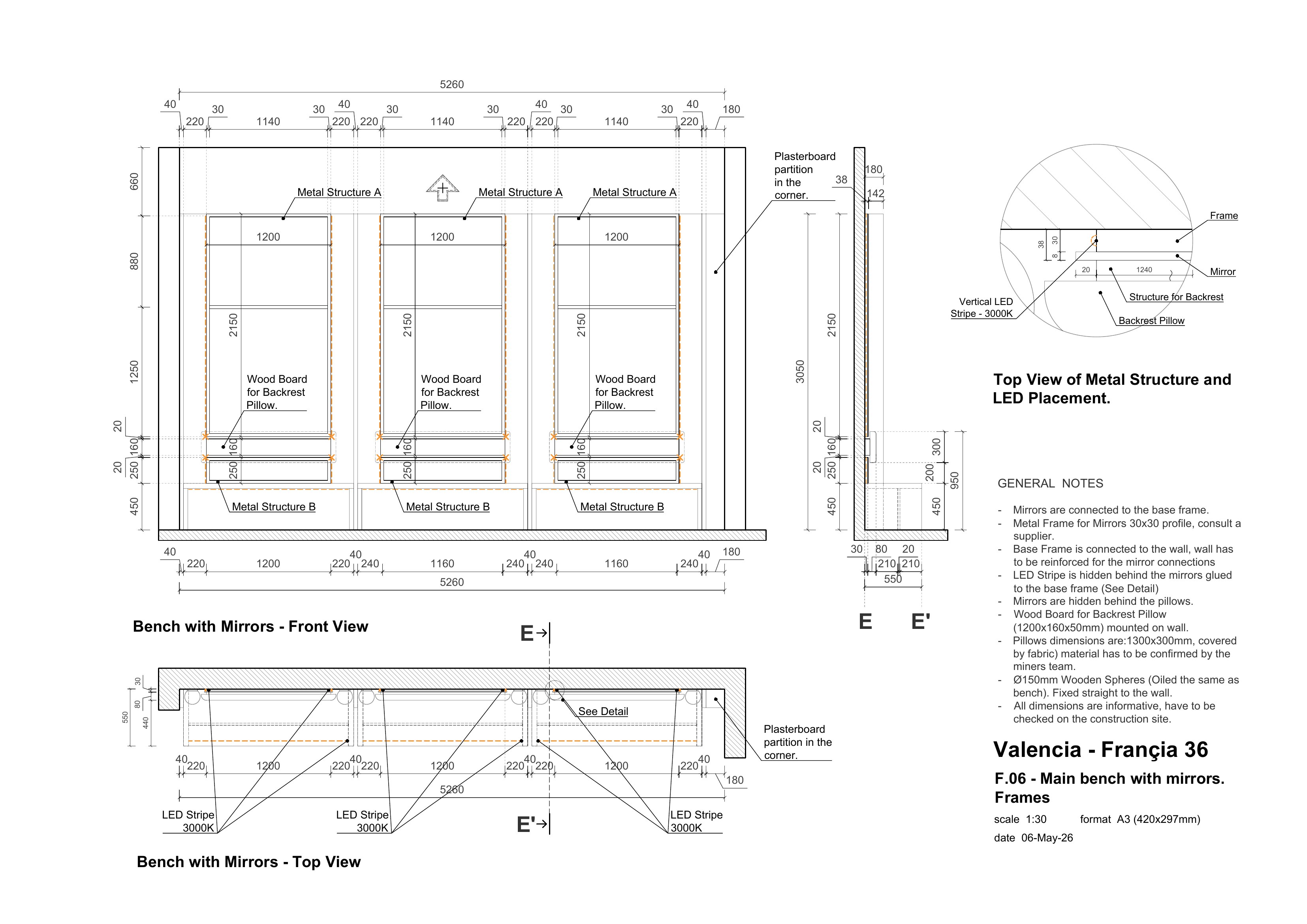

The Miners, Valencia · Spain: Bench & Mirrors, Frames

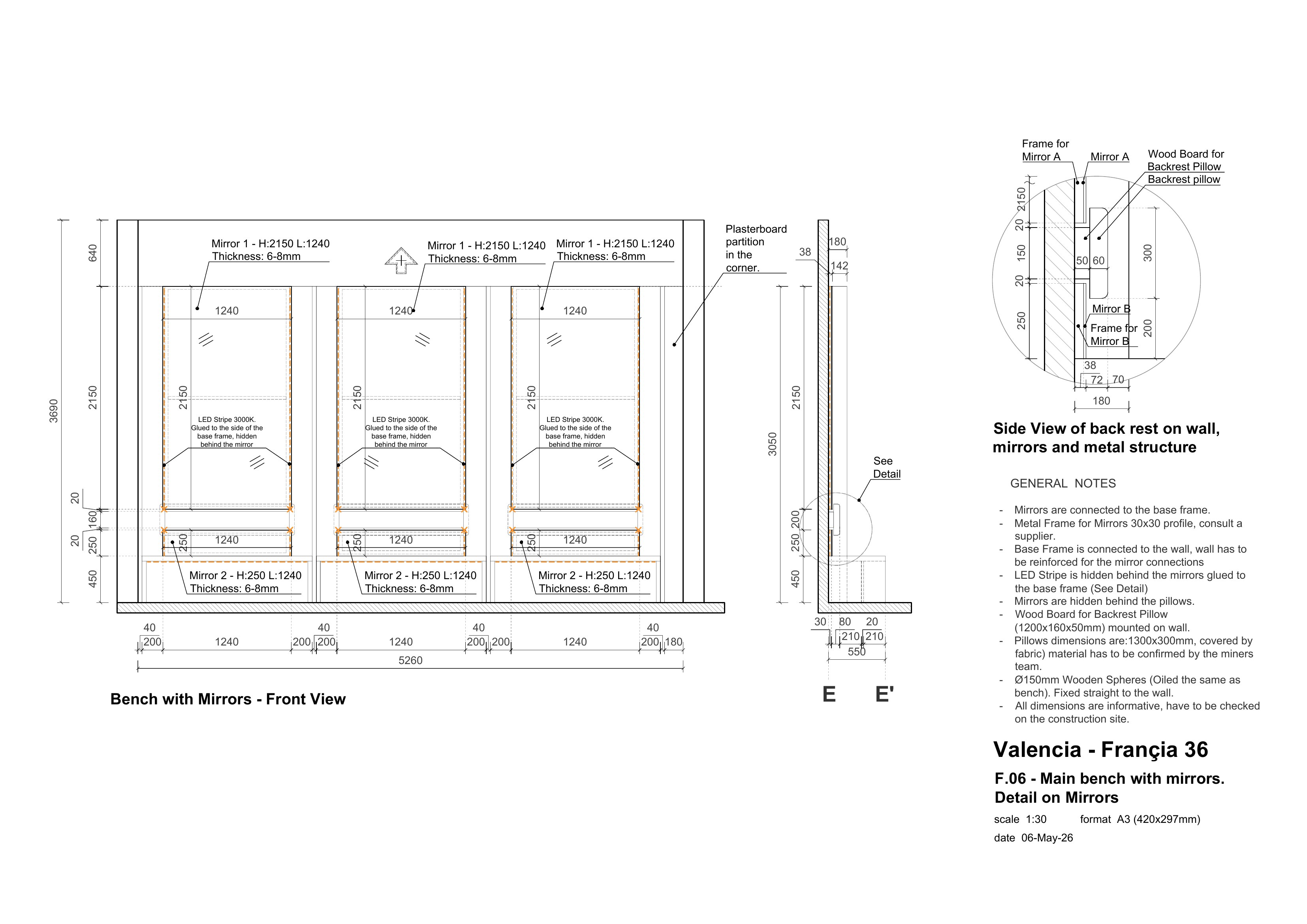

The Miners, Valencia · Spain: Bench & Mirrors, Glass
100%
Paphos · Cyprus
Franchise renovation, technical fit-out drawings
Scroll or pinch to zoom · Drag to pan

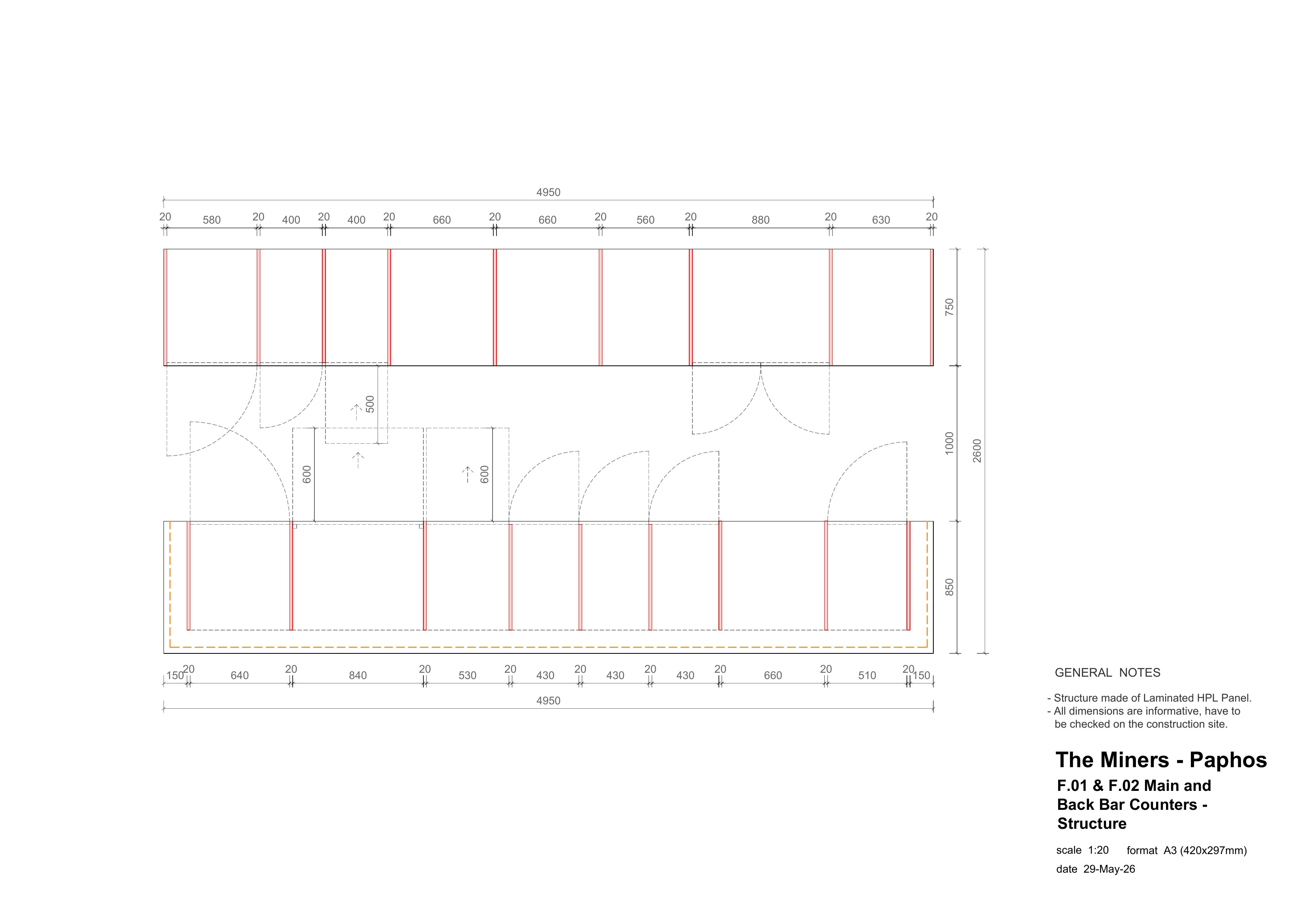

The Miners, Paphos · Cyprus: Main Bar, Structure

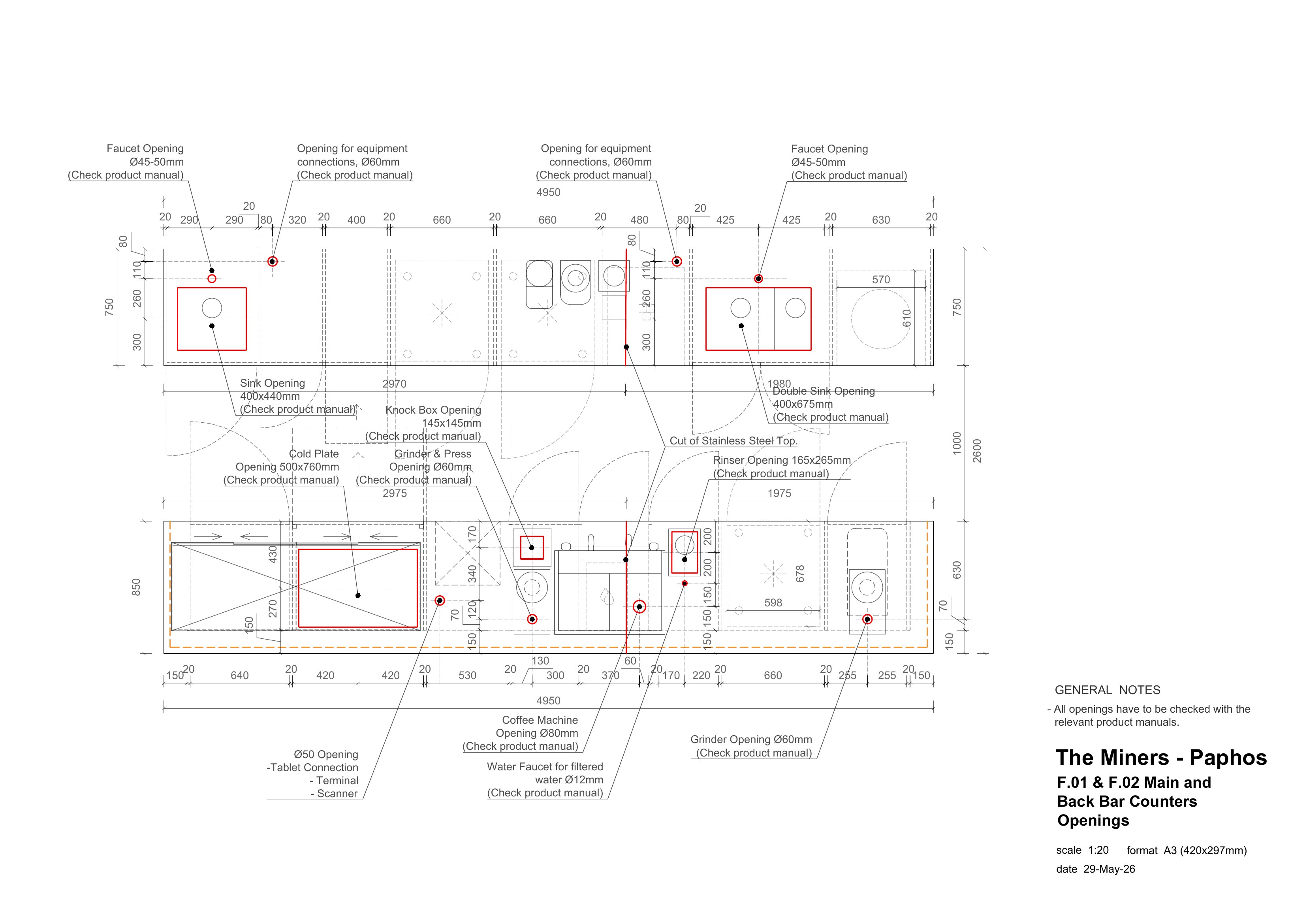

The Miners, Paphos · Cyprus: Main Bar, Openings

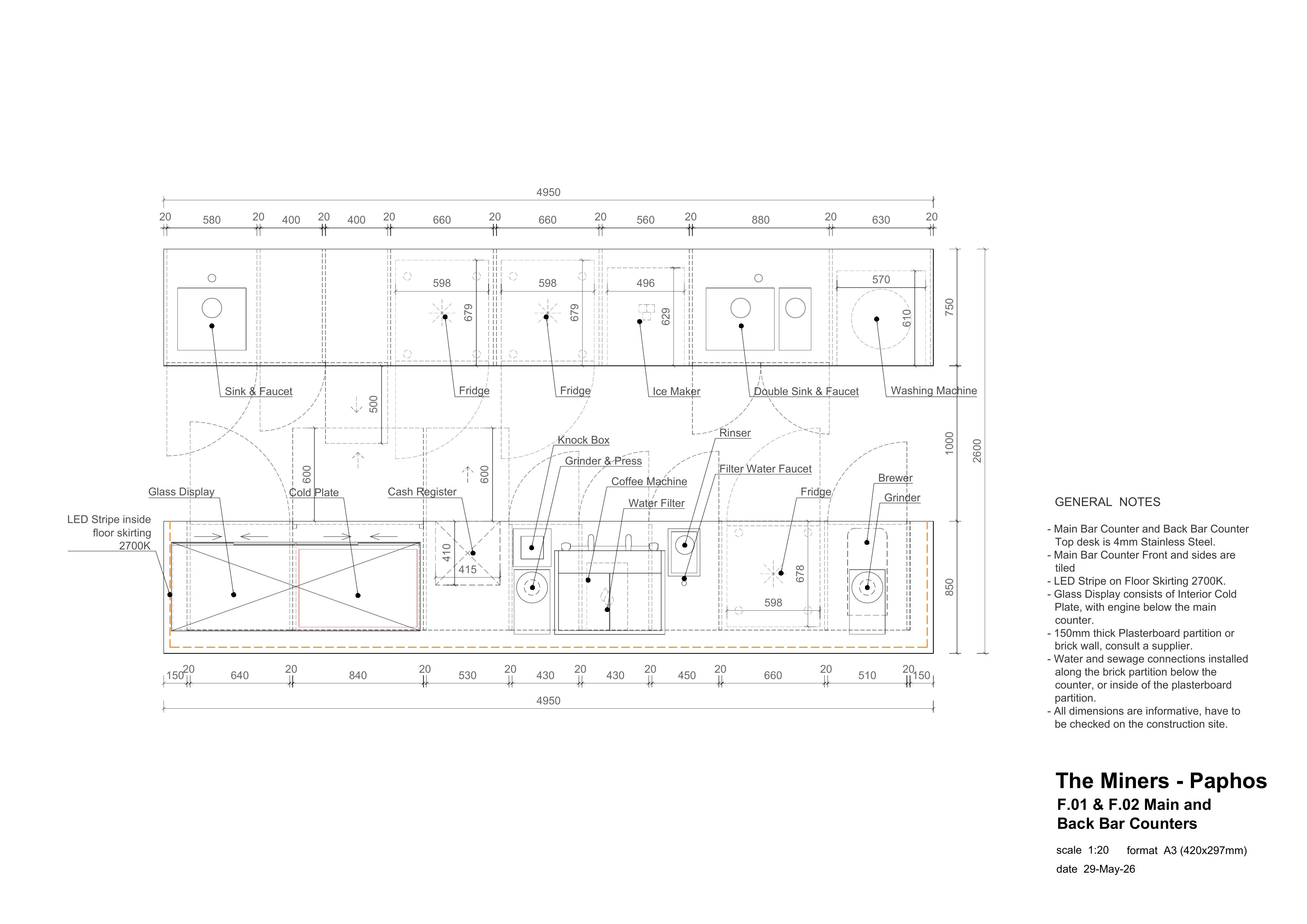

The Miners, Paphos · Cyprus: Main Bar, Equipment Disposition

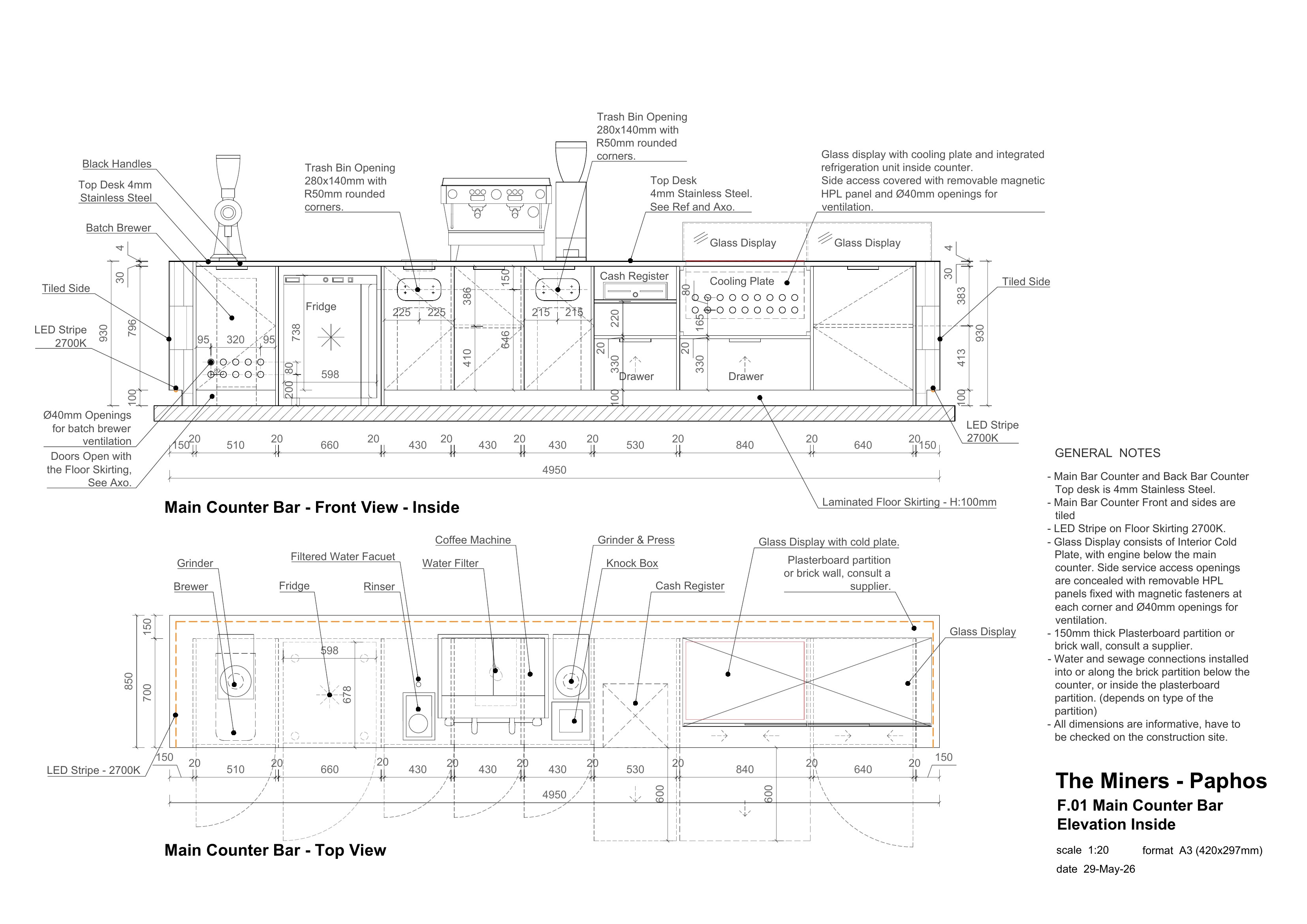

The Miners, Paphos · Cyprus: Main Bar, Elevation Inside

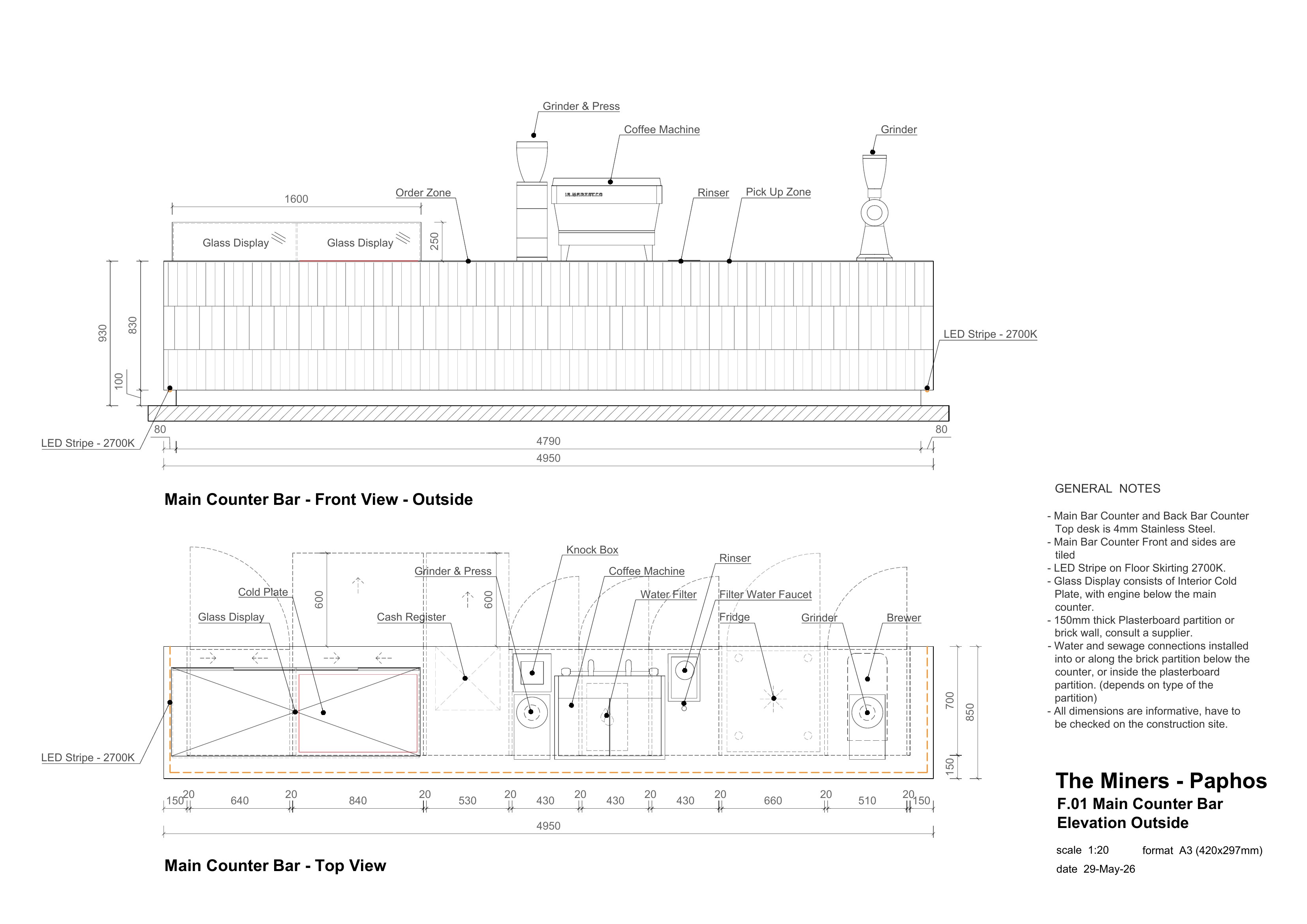

The Miners, Paphos · Cyprus: Main Bar, Elevation Outside

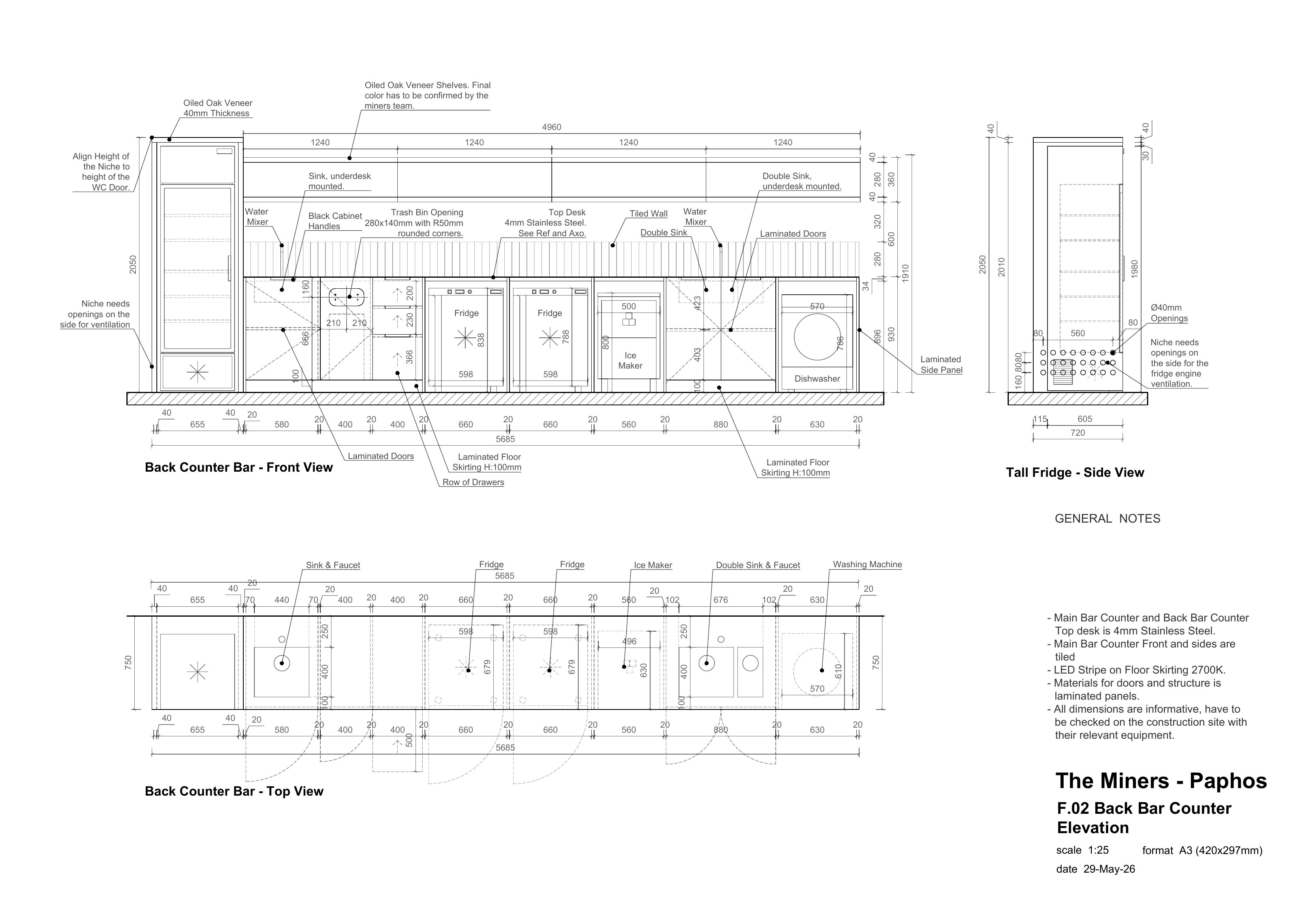

The Miners, Paphos · Cyprus: Back Bar, Overview

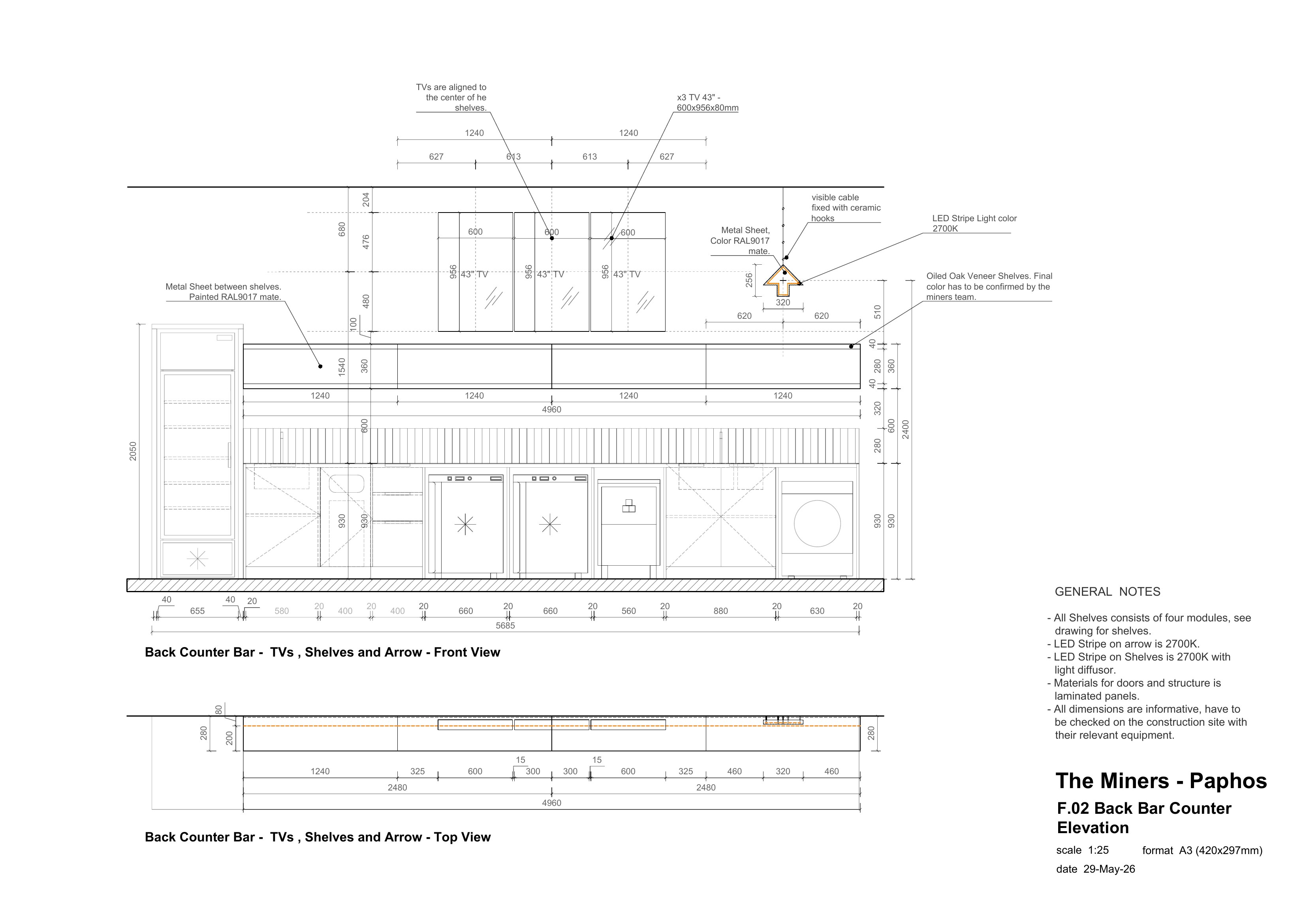

The Miners, Paphos · Cyprus: Back Bar, TV's, Shelves & Arrows

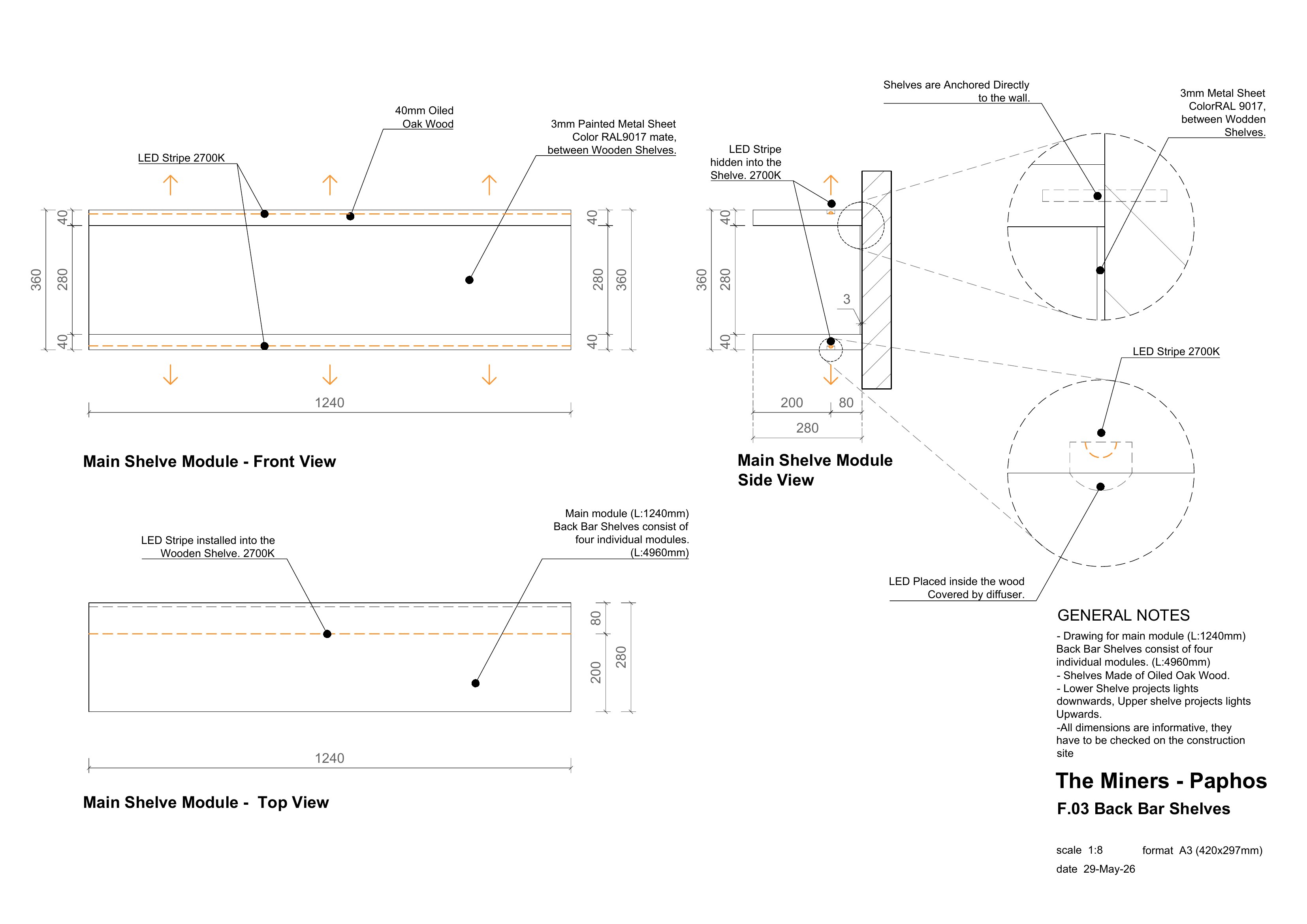

The Miners, Paphos · Cyprus: Back Bar, Shelves
100%

A note on scope: the bench is my own design. The fit-out drawings above document work designed by The Miners' main architect for each site; drafting and documenting them is my job, not designing them.
